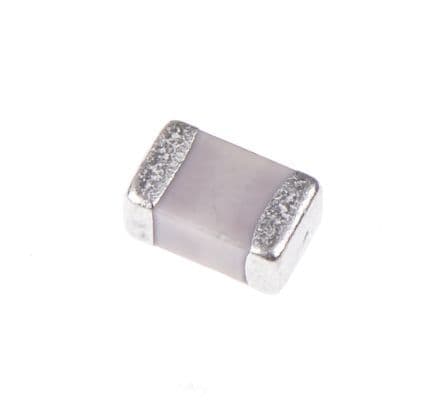

Multilayer Ceramic Capacitor (MLCC) with 3.3pF capacitance and 250V voltage rating. Features C0G dielectric for stable performance across a wide temperature range of -55°C to 125°C. Surface mountable in an 0805 (2012 metric) case size, with dimensions of 2mm length, 1.25mm width, and 0.85mm height. This lead-free, RoHS compliant component is supplied on tape and reel.
Package0805
Voltage250V
Capacitance3.3pF
Voltage Rating250V
Quick Jump:
Technical Specifications
Murata GQM2195C2E3R3BB12D technical specifications.
General
Capacitance
3.3pF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
C0G
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
GQM
Termination
SMD/SMT
Thickness
0.039inch
Voltage
250V
Voltage Rating
250V
DC Rated Voltage
250V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Murata GQM2195C2E3R3BB12D Datasheet
Download the complete datasheet for Murata GQM2195C2E3R3BB12D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
