Technical Specifications
Murata GR332DD72E154KW01L technical specifications.
General
| Capacitance | 150nF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Dielectric | X7T |
| Height | 2mm |
| Length | 0.126inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GR3 |
| Termination | SMD/SMT |
| Thickness | 0.079inch |
| Tolerance | 10% |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GR332DD72E154KW01L Datasheet
Download the complete datasheet for Murata GR332DD72E154KW01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

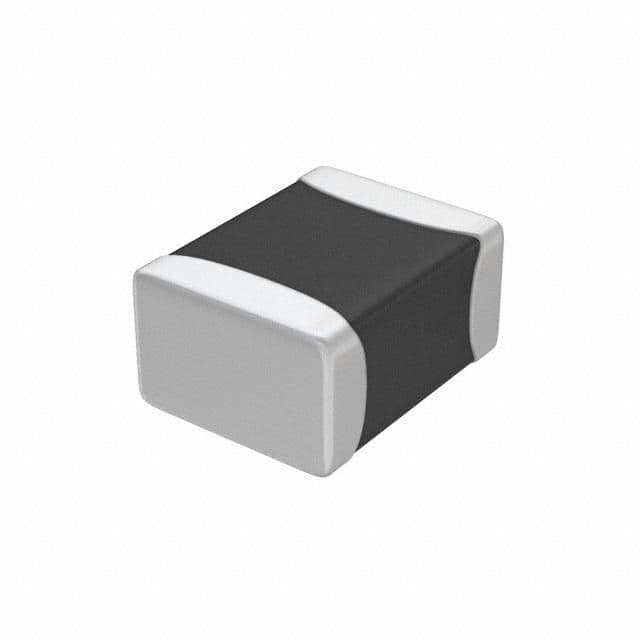

Product Images
