Technical Specifications
Murata GRM0335C1H560GA01D technical specifications.
General
| Capacitance | 56pF |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Dielectric | C0G |
| Height | 0.3mm |
| Length | 0.024inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.013inch |
| Tolerance | 2% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.012inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM0335C1H560GA01D Datasheet
Download the complete datasheet for Murata GRM0335C1H560GA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

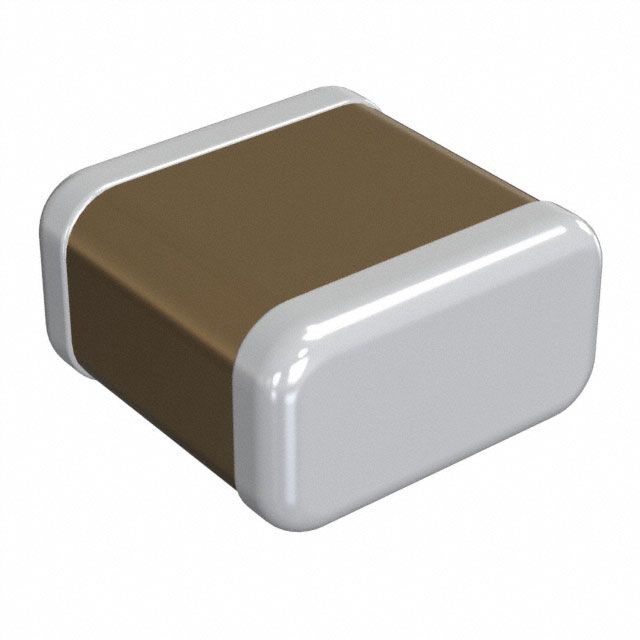

Product Images
