Multilayer Ceramic Capacitor (MLCC) with 100nF capacitance and 16V DC rating. Features X5R dielectric, 10% tolerance, and a 0201 (0603 metric) surface mount package. Operating temperature range from -55°C to 85°C. Packaged in tape and reel for automated assembly. RoHS compliant and lead-free.
Package0201
Capacitance100nF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM033R61C104KE84D technical specifications.
General
| Capacitance | 100nF |
| Case Code (Imperial) | 0201 |
| Case Code (Metric) | 0603 |
| Package/Case | 0201 |
| Construction | Flat |
| Dielectric | X5R |
| Height | 0.3mm |
| Lead Free | Lead Free |
| Length | 0.6mm |
| Material | Ceramic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 15000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.013inch |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 1.2E-05oz |
| Width | 0.012inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM033R61C104KE84D Datasheet
Download the complete datasheet for Murata GRM033R61C104KE84D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

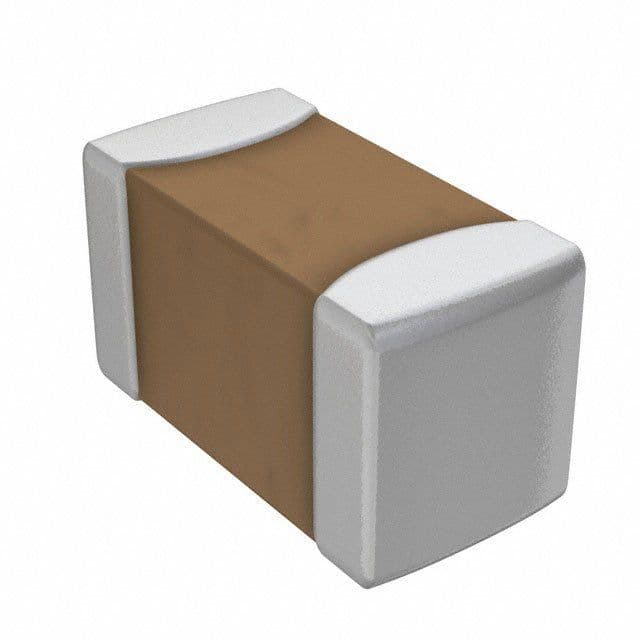

Product Images
