The GRM2165C2A102JA01D is a 1nF ceramic capacitor with a voltage rating of 100V. It has a C0G dielectric and is available in the 0805 SMD package. The capacitor operates over a temperature range of -55°C to 125°C and is compliant with RoHS regulations.
Package0805
Capacitance1nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM2165C2A102JA01D technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | C0G |
| Height | 0.6mm |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.028inch |
| Tolerance | 5% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM2165C2A102JA01D Datasheet
Download the complete datasheet for Murata GRM2165C2A102JA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

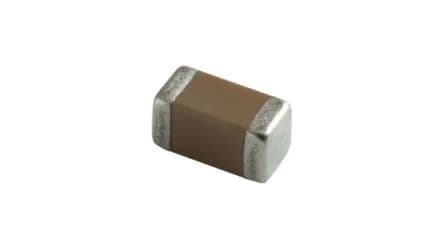

Product Images
