Multilayer Ceramic Capacitor (MLCC) with 560pF capacitance and 100V DC rated voltage. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 5% tolerance. Surface mountable in an 0805 imperial (2012 metric) case code, this lead-free, RoHS compliant component is supplied on tape and reel.
Package0805
Voltage100V
Capacitance560pF
Voltage Rating100V
Quick Jump:
Technical Specifications
Murata GRM2165C2A561JA01D technical specifications.
General
| Capacitance | 560pF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | C0G |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.028inch |
| Tolerance | 5% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM2165C2A561JA01D Datasheet
Download the complete datasheet for Murata GRM2165C2A561JA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

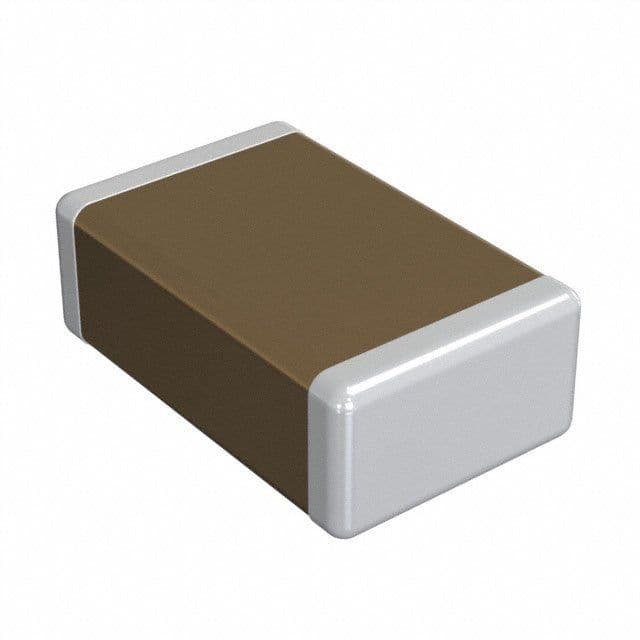

Product Images
