Multilayer Ceramic Capacitor (MLCC) with 6.8nF capacitance and 50V voltage rating. Features C0G dielectric for stable performance across a -55°C to 125°C operating temperature range. Surface mountable in an 0805 (2012 metric) case code with 5% tolerance. Lead-free and RoHS compliant, supplied on tape and reel.
Package0805
Voltage50V
Capacitance6.8nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata GRM2195C1H682JA01D technical specifications.
General
Capacitance
6.8nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
C0G
Dielectric Material
Ceramic
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Termination
SMD/SMT
Thickness
0.037inch
Tolerance
5%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM2195C1H682JA01D Datasheet
Download the complete datasheet for Murata GRM2195C1H682JA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

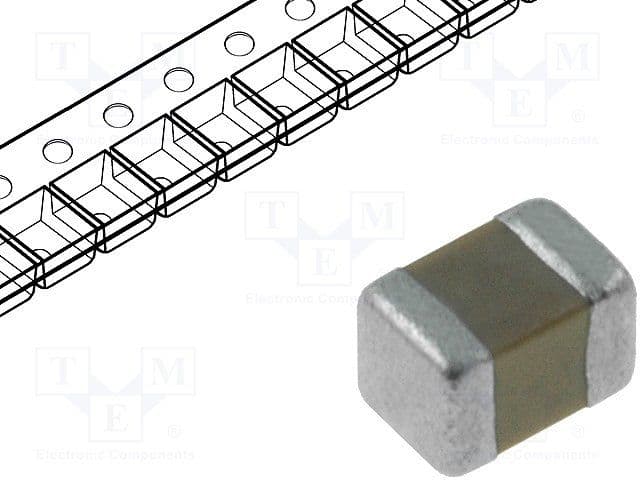

Product Images
