Multilayer Ceramic Capacitor (MLCC) with 2.2µF capacitance and 16V DC rated voltage. Features X7R dielectric material, 10% tolerance, and a 0805 (2012 metric) surface mount case code. Operates from -55°C to 125°C with a dissipation factor of 0.035%. Packaged in tape and reel, this lead-free, RoHS compliant component is ideal for demanding applications.
Package0805
Voltage16V
Capacitance2.2uF
Voltage Rating16V
Quick Jump:
Technical Specifications
Murata GRM219R71C225KE15D technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Depth | 1.25mm |
| Dielectric | X7R |
| Dielectric Material | Ceramic |
| Dissipation Factor | 0.035% |
| Height | 0.85mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 10% |
| Voltage | 16V |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Weight | 0.000335oz |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM219R71C225KE15D Datasheet
Download the complete datasheet for Murata GRM219R71C225KE15D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

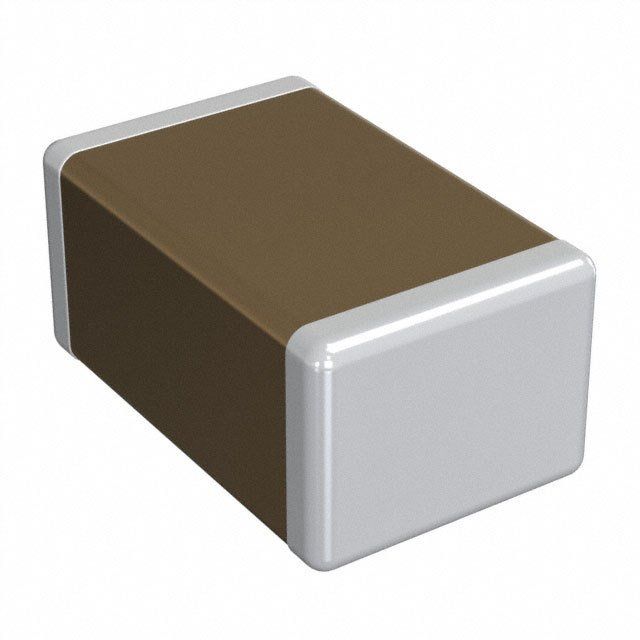

Product Images
