Multilayer Ceramic Capacitor (MLCC) with 33nF capacitance and 50V DC rated voltage. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) surface mount package. Operates from -55°C to 125°C with a dissipation factor of 0.025%. Packaged in tape and reel, this lead-free component is RoHS compliant.
Package0805
Voltage50V
Storage0.85mm
Capacitance33nF
Quick Jump:
Technical Specifications
Murata GRM219R71H333KA01D technical specifications.
General
Capacitance
33nF
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Flat
Depth
1.25mm
Dielectric
X7R
Dissipation Factor
0.025%
Height
0.85mm
Lead Free
Lead Free
Length
2mm
Material
Ceramic
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GRM
Size
0.85mm
Termination
SMD/SMT
Thickness
0.037inch
Tolerance
10%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Murata GRM219R71H333KA01D Datasheet
Download the complete datasheet for Murata GRM219R71H333KA01D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

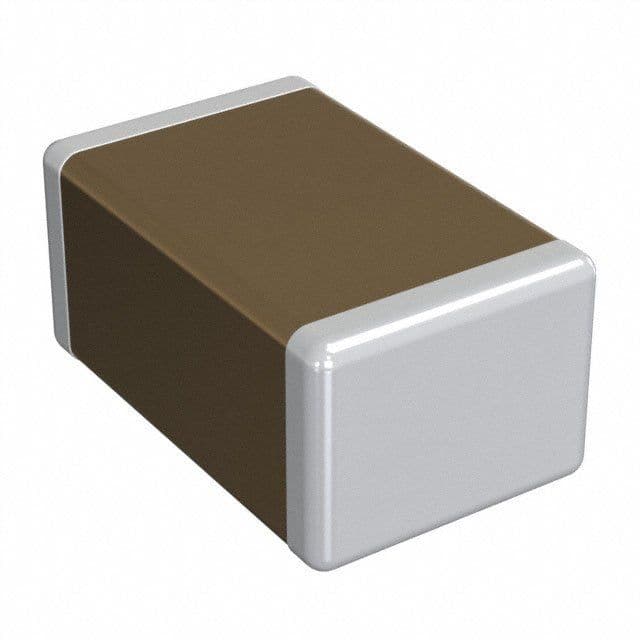

Product Images
