Multilayer Ceramic Capacitor (MLCC) with 150nF capacitance and 50V DC rated voltage. Features X7R dielectric, 10% tolerance, and a 0805 (2012 metric) SMD/SMT case code. Operates from -55°C to 125°C, constructed with ceramic material and flat termination. Packaged in Tape and Reel, this component is Lead Free and RoHS Compliant.
Package0805
Voltage50V
Capacitance150nF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata GRM21BR71H154KA01L technical specifications.
General
| Capacitance | 150nF |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Flat |
| Depth | 1.25mm |
| Dielectric | X7R |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.053inch |
| Tolerance | 10% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM21BR71H154KA01L Datasheet
Download the complete datasheet for Murata GRM21BR71H154KA01L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

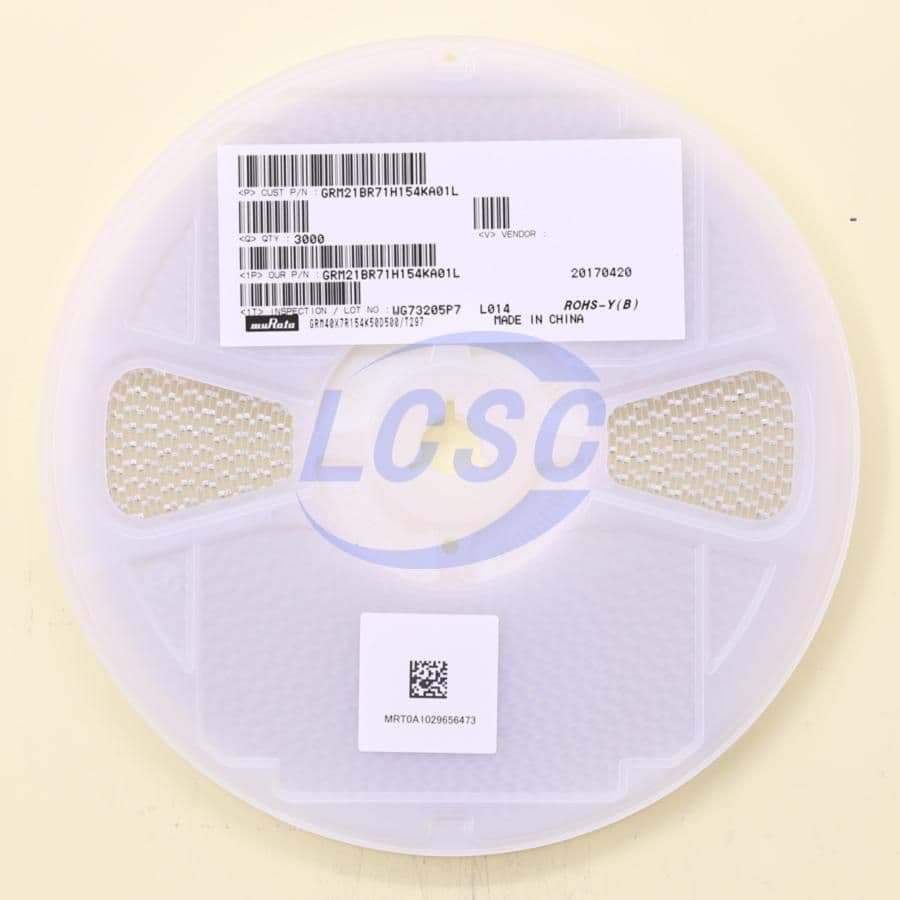

Product Images
