Cap Ceramic 0.01uF 50V C0G 1% Pad SMD 1206 125°C T/R
Package1206
Capacitance10nF
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM3195C1H103FA01D technical specifications.
General
| Capacitance | 10nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | C0G |
| Height | 0.85mm |
| Length | 3.2mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM3195C1H103FA01D Datasheet
Download the complete datasheet for Murata GRM3195C1H103FA01D to view detailed technical specifications.
No datasheet is available for this part.

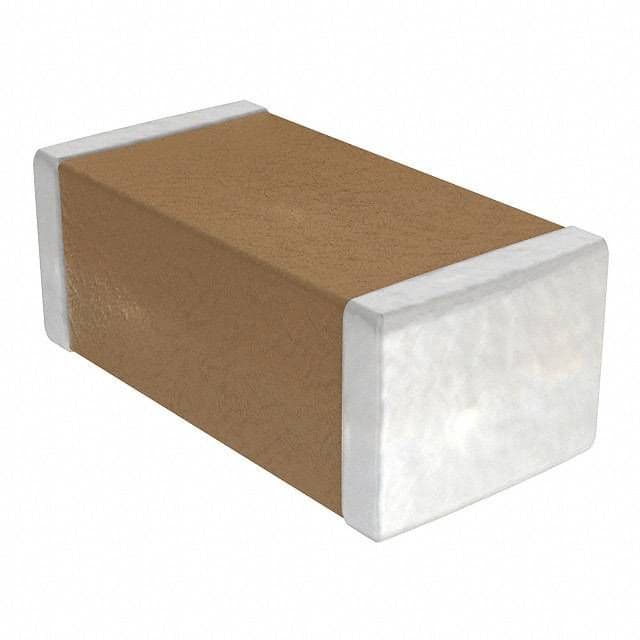

Product Images
