1nF, 100V X7R multilayer ceramic capacitor with 10% tolerance. Features a 1206 surface mount package, 125°C maximum operating temperature, and ceramic construction. Dimensions include 3.2mm length, 1.6mm depth, and 0.85mm height. Packaged in tape and reel for automated assembly.
Package1206
Capacitance1nF
Voltage Rating100V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata GRM319R72A102KA01D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata GRM319R72A102KA01D technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Construction | Flat |
| Depth | 1.6mm |
| Dielectric | X7R |
| Height | 0.85mm |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.037inch |
| Tolerance | 10% |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.063inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM319R72A102KA01D Datasheet
Download the complete datasheet for Murata GRM319R72A102KA01D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

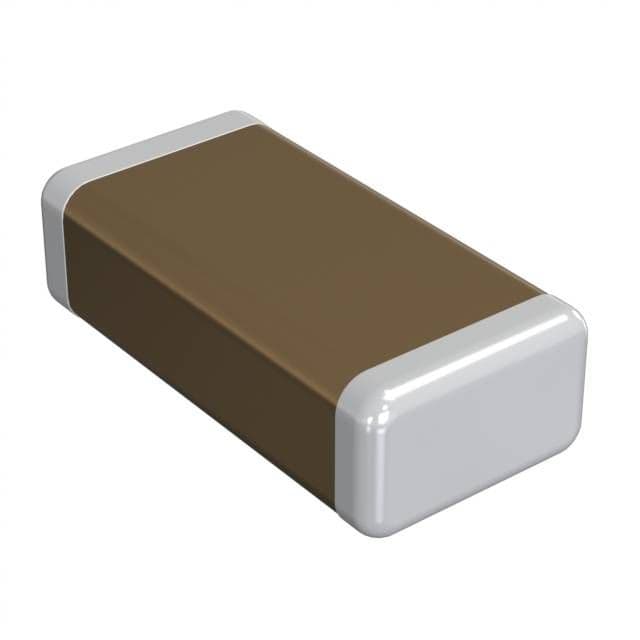

Product Images
