Multilayer Ceramic Capacitor (MLCC) with 47µF capacitance and 10V DC rated voltage. Features X7R dielectric for stable performance across a -55°C to 125°C operating temperature range, with a 20% tolerance. Surface mountable in a 1210 (3225 metric) case code, this lead-free component is supplied on tape and reel.
Package1210
Voltage10V
Capacitance47uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Murata GRM32ER71A476ME15L technical specifications.
General
| Capacitance | 47uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.106inch |
| Tolerance | 20% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM32ER71A476ME15L Datasheet
Download the complete datasheet for Murata GRM32ER71A476ME15L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

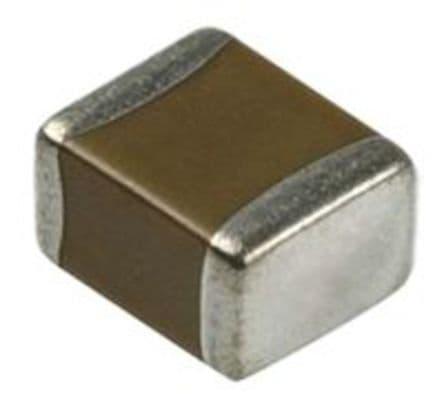

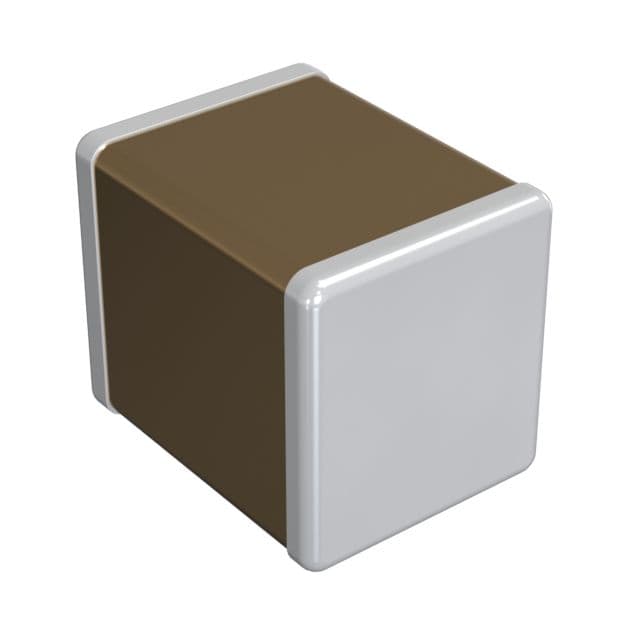

Product Images
