Multilayer ceramic capacitor with 22µF capacitance and 16V DC rated voltage. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) surface mount package. Operates from -55°C to 125°C, constructed with lead-free termination and ceramic material. Packaged in tape and reel for automated assembly.
Package1210
Capacitance22uF
Voltage Rating16V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata GRM32ER71C226KE18L technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.106inch |
| Tolerance | 10% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM32ER71C226KE18L Datasheet
Download the complete datasheet for Murata GRM32ER71C226KE18L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

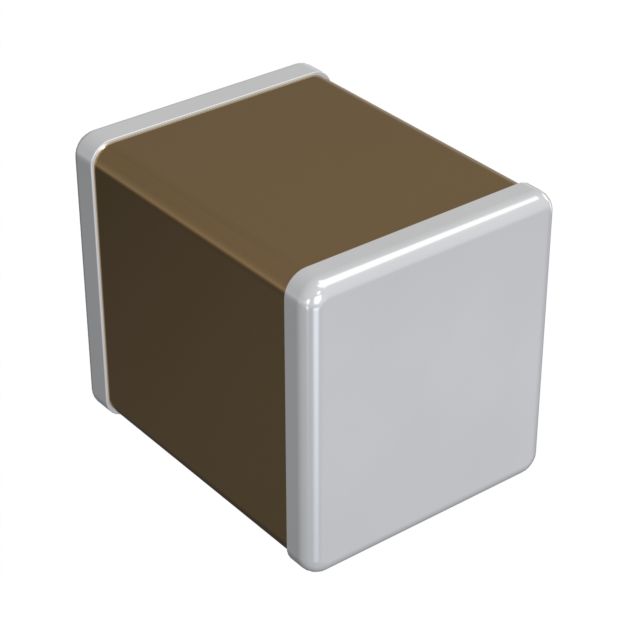

Product Images
