Multilayer Ceramic Capacitor (MLCC) with 2.2µF capacitance and 100V DC rating. Features X7R dielectric, 10% tolerance, and a 1210 (3225 metric) surface mount case code. Operates from -55°C to 125°C and is RoHS compliant. Packaged in tape and reel.
Package1210
Voltage100V
Capacitance2.2uF
Voltage Rating100V
Quick Jump:
Technical Specifications
Murata GRM32ER72A225KA35L technical specifications.
General
| Capacitance | 2.2uF |
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Construction | Flat |
| Depth | 2.5mm |
| Dielectric | X7R |
| Height | 2.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GRM |
| Termination | SMD/SMT |
| Thickness | 0.106inch |
| Tolerance | 10% |
| Voltage | 100V |
| Voltage Rating | 100V |
| DC Rated Voltage | 100V |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata GRM32ER72A225KA35L Datasheet
Download the complete datasheet for Murata GRM32ER72A225KA35L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

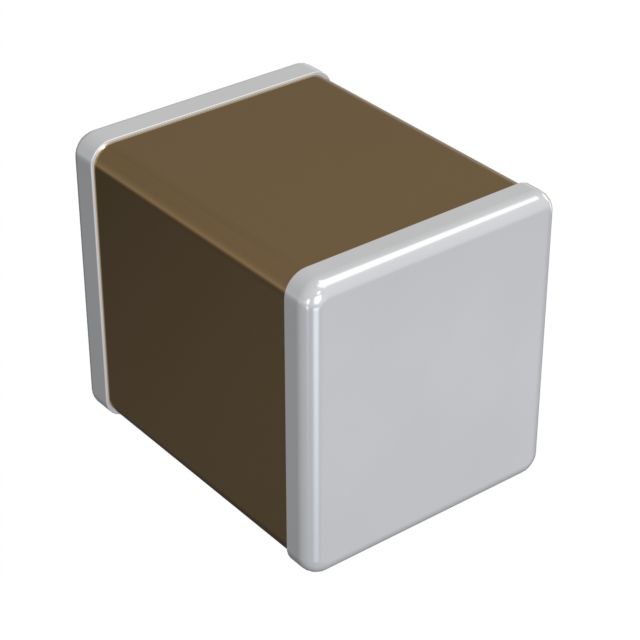

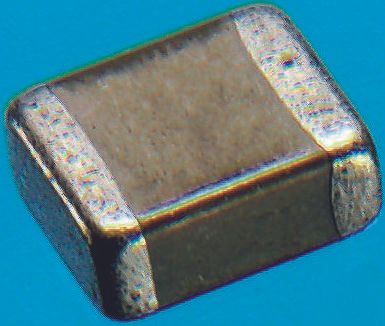

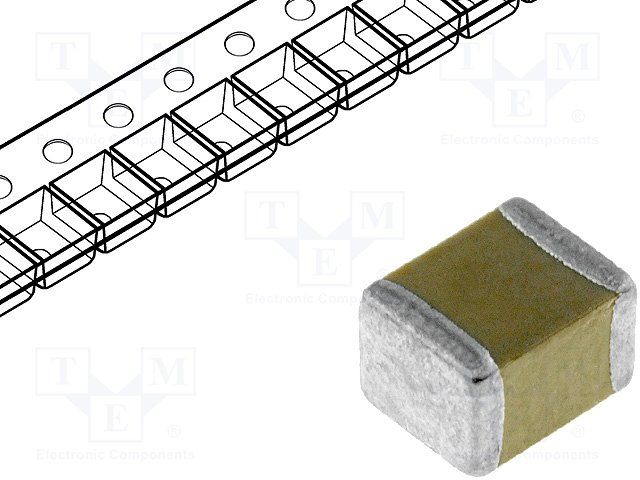

Product Images
