Surface mount multilayer ceramic capacitor with 22µF capacitance and 63V DC rating. Features X7R dielectric, 20% tolerance, and a maximum operating temperature of 125°C. Designed for automotive applications with AEC-Q200 qualification and soft termination for enhanced reliability. Packaged in tape and reel for automated assembly.
PackageSMD/SMT
Capacitance22uF
Voltage Rating63V
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata KCM55WR71J226MH01K technical specifications.
General
| Capacitance | 22uF |
| Package/Case | SMD/SMT |
| Dielectric | X7R |
| Features | Soft Termination |
| Height | 6.4mm |
| Lead Free | Lead Free |
| Lead/Base Style | J-Lead |
| Length | 0.24inch |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| RoHS Compliant | Yes |
| Series | KCM |
| Terminal Width | 1.2mm |
| Termination | SMD/SMT |
| Thickness | 0.264inch |
| Tolerance | 20% |
| Voltage Rating | 63V |
| DC Rated Voltage | 63V |
| Width | 0.209inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata KCM55WR71J226MH01K Datasheet
Download the complete datasheet for Murata KCM55WR71J226MH01K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

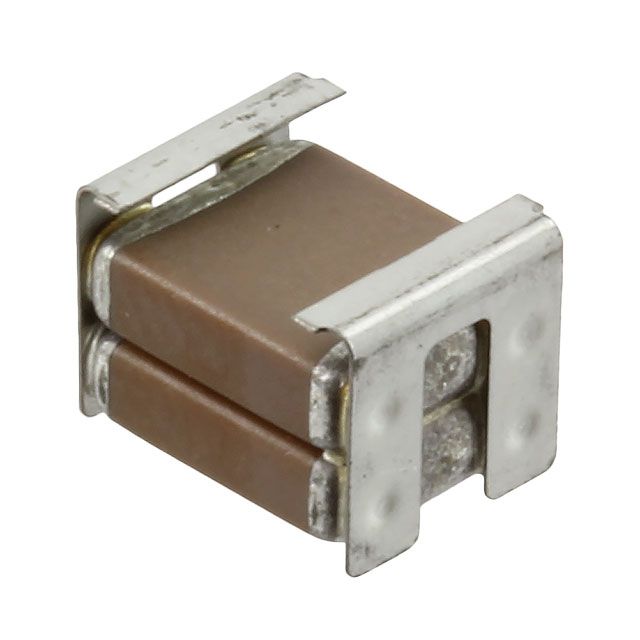

Product Images
