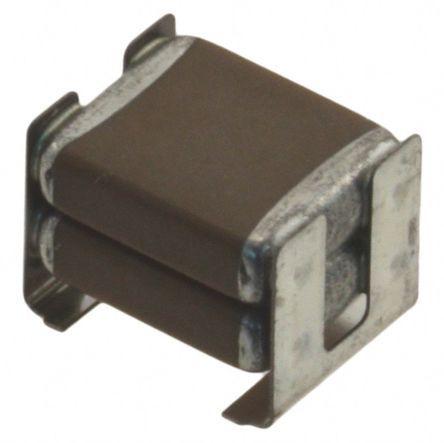

Multilayer Ceramic Capacitor (MLCC) with 22µF capacitance and 50V DC rated voltage. Features X7R dielectric, 20% tolerance, and a J-Lead terminal style. Designed for surface mount (SMD/SMT) applications with a 2420 (6050) imperial/metric case code. Operates across a temperature range of -55°C to 125°C and is supplied in tape and reel packaging.
PackageSMD/SMT
Voltage50V
Capacitance22uF
Voltage Rating50V
Quick Jump:
Technical Specifications
Murata KRM55WR71H226MH01K technical specifications.
General
| Capacitance | 22uF |
| Case Code (Imperial) | 2420 |
| Case Code (Metric) | 6050 |
| Package/Case | SMD/SMT |
| Depth | 5.3mm |
| Dielectric | X7R |
| Height | 6.4mm |
| Lead Free | Lead Free |
| Lead/Base Style | J-Lead |
| Length | 6.1mm |
| Material | Ceramic |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KRM |
| Terminal Width | 1.2mm |
| Termination | SMD/SMT |
| Thickness | 0.264inch |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.209inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata KRM55WR71H226MH01K Datasheet
Download the complete datasheet for Murata KRM55WR71H226MH01K to view detailed technical specifications.
