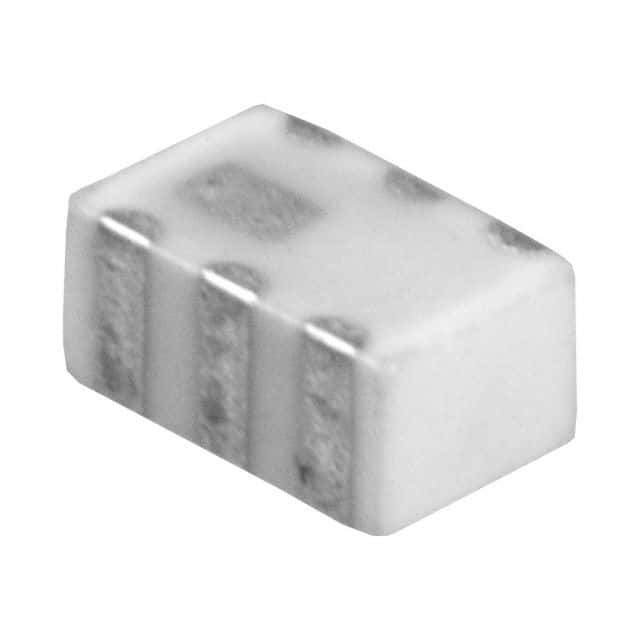

The Murata LDB212G4020C-001 is a surface mount RF transformer with a frequency range of 2.3GHz to 2.5GHz and an impedance of 200 ohms. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The transformer is packaged in a 0805 case and is lead free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LDB212G4020C-001 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Frequency | 2.4GHz |
| Impedance | 200R |
| Insertion Loss | 1.1dB |
| Lead Free | Lead Free |
| Max Frequency | 2.5GHz |
| Min Frequency | 2.3GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LDB |
| Termination | SMD/SMT |
| Width | 1.25mm |
| RoHS | Compliant |
