Board mount DC-DC converter module, 0.25W output power, 5V single output at 50mA. Features 1kV isolation voltage, 70% efficiency, and short-circuit protection (SCP). Operates within a 10.8V to 13.2V DC input range, with a nominal input of 12V. Packaged in a SIP-4 case with through-hole mounting, rated UL94 V-0 for flammability.
PackageSIP
MountingThrough Hole
Power250mW
Quick Jump:
Technical Specifications
Murata LME1205SC technical specifications.
General
| Package/Case | SIP |
| Current - Output 1 | 50mA |
| Depth | 11.48mm |
| Efficiency | 70% |
| Features | SCP |
| Flammability Rating | UL94 V-0 |
| Height | 10mm |
| Isolation Voltage | 1kV |
| Lead Free | Lead Free |
| Length | 0.45inch |
| Max Input Voltage (DC) | 13.2V |
| Min Input Voltage (DC) | 10.8V |
| Max Input Voltage | 13.2V |
| Min Input Voltage | 10.8V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 50mA |
| Max Output Power | 250mW |
| Max Power Dissipation | 250mW |
| Mount | Through Hole |
| Nominal Input Voltage | 12V |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 50mA |
| Output Power | 250mW |
| Output Voltage | 5V |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LME |
| Voltage - Output 1 | 5V |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LME1205SC Datasheet
Download the complete datasheet for Murata LME1205SC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

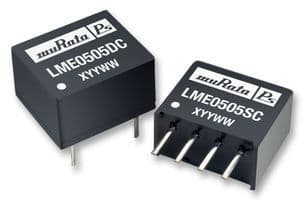

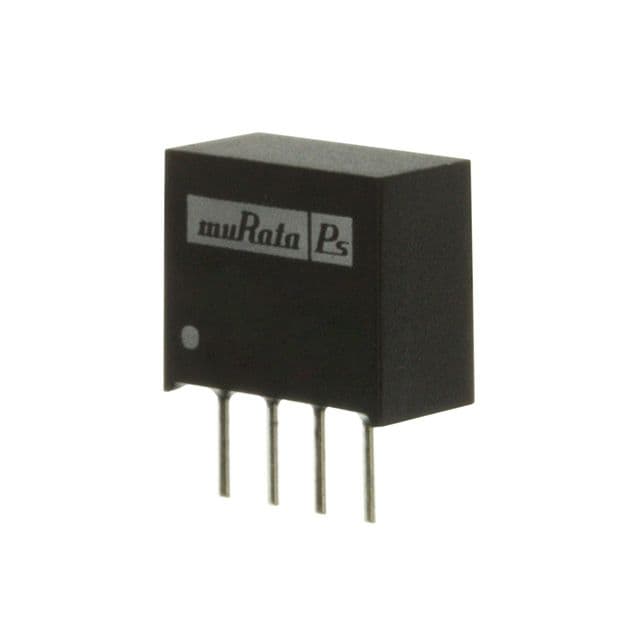

Product Images
