Surface mount, unshielded, multi-layer chip inductor with 1.6nH inductance and 300mA rated current. Features an air core, 8 Q-factor at 100MHz, and 6GHz self-resonant frequency. 0402 package size with 100mR DC resistance. Operating temperature range of -55°C to 125°C.
Package0402
Current300mA
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata LQG15HN1N6S02D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Air
Current
300mA
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
100mR
Depth
0.55mm
Height
0.5mm
Height - Seated (Max)
0.022inch
Inductance
1.6nH
Inductor Type
MONOLITHIC
Lead Free
Lead Free
Length
1mm
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
8
Rated Current-Max
300mA
Reach SVHC Compliant
No
RMS Current (Irms)
1A
RoHS Compliant
Yes
Self Resonant Frequency
6GHz
Series
LQG15HS
Series Resistance
80mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQG15HN1N6S02D Datasheet
Download the complete datasheet for Murata LQG15HN1N6S02D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

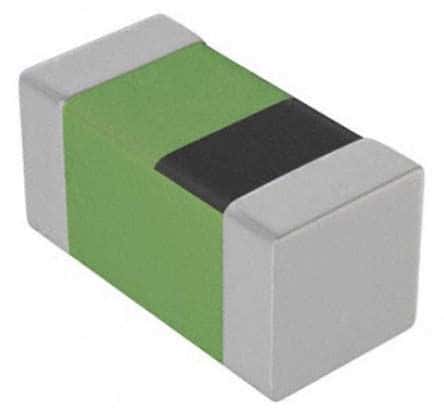

Product Images
