Surface mount general purpose inductor with 2.2nH inductance and 300mA rated current. Features an air-core, 0402 (1005 metric) case size, and 120mΩ DC resistance. Operates from -55°C to 125°C with a self-resonant frequency of 6GHz. Unshielded, lead-free, and RoHS compliant.
Package0402
Current Rating300mA
MountingSurface Mount
Inductance2.2nH
Quick Jump:
Technical Specifications
Murata LQG15HS2N2S02D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Air
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
120mR
Depth
0.55mm
Height
0.5mm
Height - Seated (Max)
0.022inch
Inductance
2.2nH
Lead Free
Lead Free
Length
1mm
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
Rated Current-Max
300mA
RMS Current (Irms)
900mA
RoHS Compliant
Yes
Self Resonant Frequency
6GHz
Series
LQG15HS
Series Resistance
90mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQG15HS2N2S02D Datasheet
Download the complete datasheet for Murata LQG15HS2N2S02D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

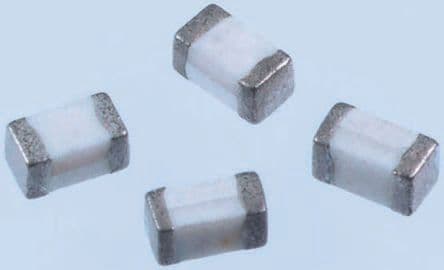

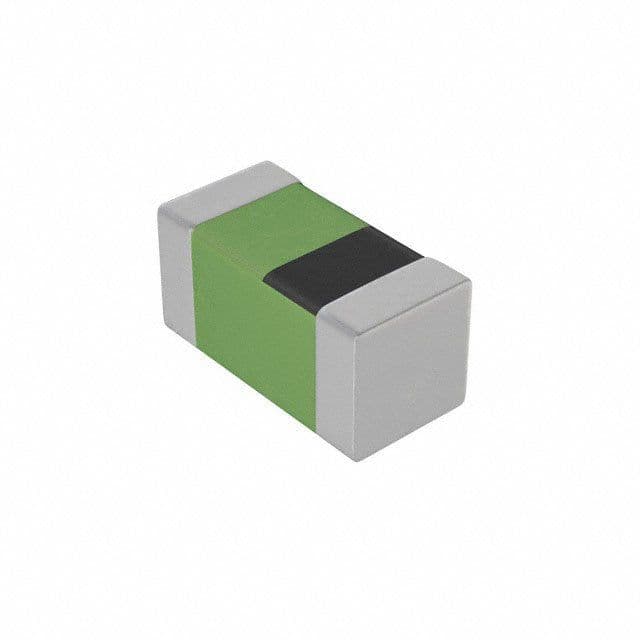

Product Images
