Surface mount general purpose inductor with 3nH inductance and 10% tolerance. Features an air-core, 0402 package size (1005 metric), and 300mA rated current. Offers 170mR DC resistance and 800mA RMS current, with a self-resonant frequency of 6GHz. Operating temperature range is -55°C to 125°C.
Package0402
Current Rating300mA
MountingSurface Mount
Inductance3nH
Quick Jump:
Technical Specifications
Murata LQG15HS3N0S02D technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Core Material
Air
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
170mR
Depth
0.55mm
Height
0.5mm
Height - Seated (Max)
0.022inch
Inductance
3nH
Lead Free
Lead Free
Length
1mm
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
8
Radiation Hardening
No
Rated Current-Max
300mA
RMS Current (Irms)
800mA
RoHS Compliant
Yes
Self Resonant Frequency
6GHz
Series
LQG15HS
Series Resistance
125mR
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
100MHz
Width
0.02inch
Compliance
RoHS
Compliant
Datasheet
Murata LQG15HS3N0S02D Datasheet
Download the complete datasheet for Murata LQG15HS3N0S02D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

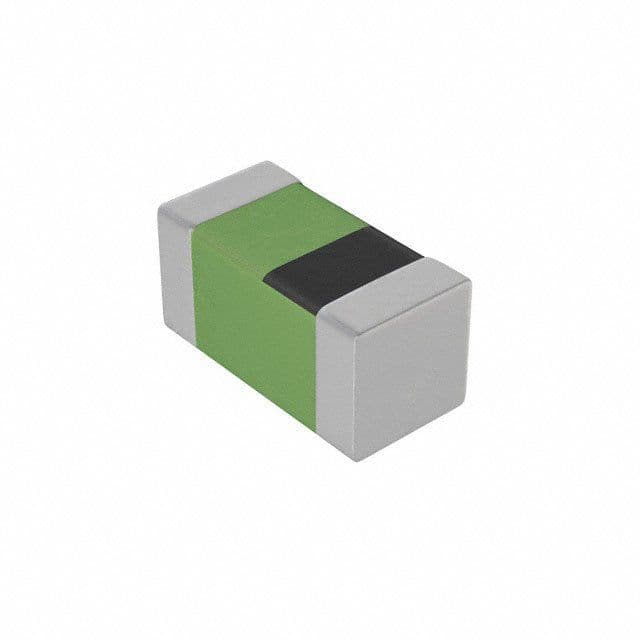

Product Images
