Surface mount fixed inductor featuring 8.2nH inductance with a 5% tolerance, tested at 100MHz. This unshielded, multi-layer chip inductor boasts an 8 Q-factor and a 3.7GHz self-resonant frequency. Designed for surface mounting in a 0402 (1005 metric) case, it operates within a -55°C to 125°C temperature range and handles a maximum DC current of 300mA with a 240mΩ DC resistance.
Package0402
Current Rating300mA
MountingSurface Mount
Inductance8.2nH
Quick Jump:
Technical Specifications
Murata LQG15HS8N2J02D technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Air |
| Current Rating | 300mA |
| DC Current | 300mA |
| DC Resistance (DCR) | 240mR |
| Depth | 0.55mm |
| Height | 0.5mm |
| Height - Seated (Max) | 0.022inch |
| Inductance | 8.2nH |
| Lead Free | Lead Free |
| Length | 1mm |
| Max DC Current | 300mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 8 |
| Rated Current-Max | 300mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 3.7GHz |
| Series | LQG15HS |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 5% |
| Weight | 2.3E-05oz |
| Width | 0.02inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQG15HS8N2J02D Datasheet
Download the complete datasheet for Murata LQG15HS8N2J02D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

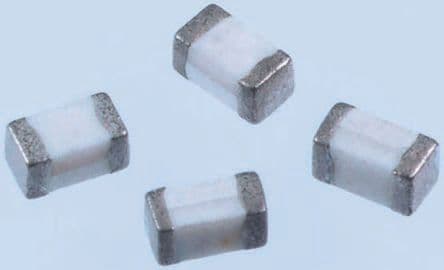

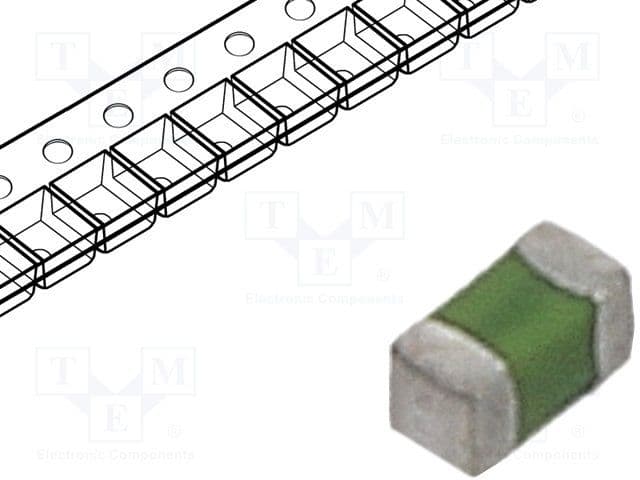

Product Images
