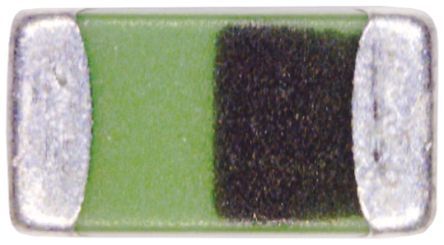

Surface mount fixed inductor featuring 39nH inductance with a 5% tolerance, designed for RF applications. This unshielded, multi-layer chip inductor operates with a Q factor of 12 at 100MHz and a self-resonant frequency of 1.5GHz. It supports a maximum DC current of 300mA and exhibits a DC resistance of 650mR. The component is housed in a compact 0603 (1608 metric) case, measuring 0.063 inches in length and 0.031 inches in width and height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQG18HN39NJ00D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata LQG18HN39NJ00D technical specifications.
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Air |
| Current Rating | 300mA |
| DC Current | 300mA |
| DC Resistance (DCR) | 650mR |
| Depth | 0.95mm |
| Height | 0.031inch |
| Inductance | 39nH |
| Inductance Tolerance | 5% |
| Lead Free | Lead Free |
| Length | 0.063inch |
| Max DC Current | 300mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 12 |
| Rated Current-Max | 300mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 1.5GHz |
| Series | LQG18H |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 5% |
| Width | 0.031inch |
| RoHS | Compliant |
