Surface mount general purpose inductor with 100nH inductance and 5% tolerance. Features an air core, 300mA current rating, and 900mR DC resistance. Packaged in a 0603 (1608 metric) SMD case, this unshielded inductor operates from -40°C to 85°C and has a self-resonant frequency of 800MHz. RoHS compliant and available on tape and reel.
Package0603
Current Rating300mA
MountingSurface Mount
Inductance100nH
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata LQG18HNR10J00D datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata LQG18HNR10J00D technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Core Material | Air |
| Current Rating | 300mA |
| DC Current | 300mA |
| DC Resistance (DCR) | 900mR |
| Depth | 0.95mm |
| Height | 0.031inch |
| Inductance | 100nH |
| Inductance Tolerance | 5% |
| Lead Free | Lead Free |
| Length | 1.75mm |
| Max DC Current | 300mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 12 |
| Radiation Hardening | No |
| Rated Current-Max | 300mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 800MHz |
| Series | LQG18H |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 5% |
| Width | 0.031inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQG18HNR10J00D Datasheet
Download the complete datasheet for Murata LQG18HNR10J00D to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

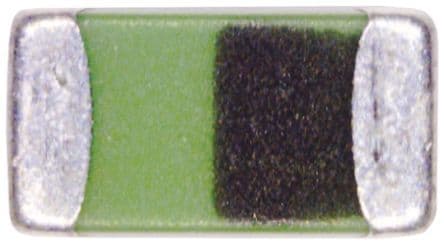

Product Images
