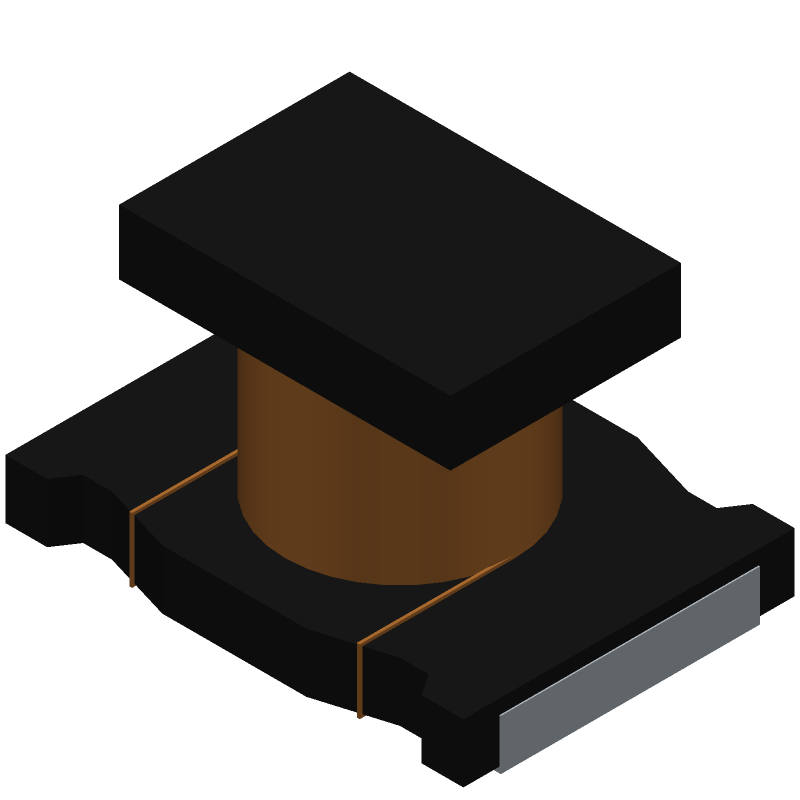

High-frequency surface mount fixed inductor with 880nH inductance and 5% tolerance, designed for 1MHz test frequency. Features a ferrite core, 60 Q-factor, and a maximum DC current of 180mA. This 1206 (3216 metric) case component offers a DC resistance of 1.118 Ohms and operates within a temperature range of -40°C to 85°C. Packaged in tape and reel, this unshielded inductor is RoHS compliant.
Package1206
Resistance1.118R
MountingSurface Mount
Inductance880nH
Quick Jump:
Technical Specifications
Murata LQH31HNR88J03L technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Core Material | Ferrite |
| DC Current | 180mA |
| DC Resistance (DCR) | 1.118R |
| Depth | 1.8mm |
| Height | 1.8mm |
| Inductance | 880nH |
| Length | 3.2mm |
| Max DC Current | 180mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 60 |
| Radiation Hardening | No |
| Resistance | 1.118R |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 200MHz |
| Series | LQH31H |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 5% |
| Weight | 0.001023oz |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH31HNR88J03L Datasheet
Download the complete datasheet for Murata LQH31HNR88J03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
