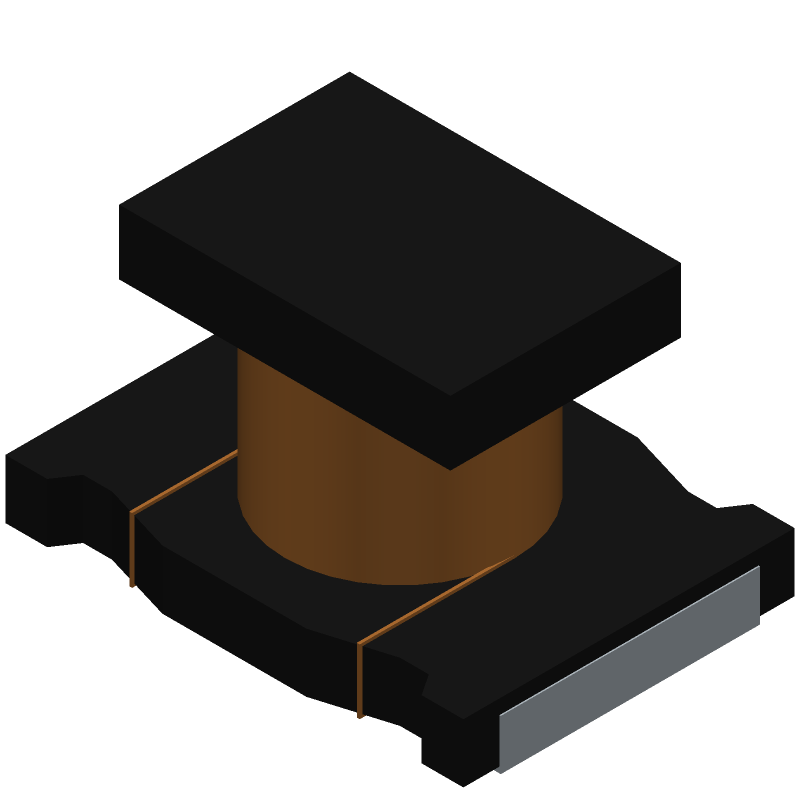

Surface mount fixed inductor featuring 880nH inductance with a 10% tolerance, designed for high-frequency applications. This wirewound ferrite core component offers a 180mA current rating and a DC resistance of 860mΩ. Operating within a temperature range of -40°C to 85°C, it boasts a Q factor of 60 at 1MHz and a self-resonant frequency of 200MHz. Packaged in a 1206 (3216 metric) case, it is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Core Material | Ferrite |
| Current Rating | 180mA |
| DC Current | 180mA |
| DC Resistance (DCR) | 860mR |
| Depth | 1.8mm |
| Height | 0.071inch |
| Height - Seated (Max) | 0.079inch |
| Inductance | 880nH |
| Inductance Tolerance | 10% |
| Length | 3.2mm |
| Max DC Current | 180mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 60 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 200MHz |
| Series | LQH31H |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 10% |
| Weight | 0.001023oz |
| Width | 0.063inch |
| RoHS | Compliant |
These are design resources that include the Murata LQH31HNR88K03L
Application note for the NXP BGA3018 wideband CATV MMIC amplifier, covering schematic, layout, and performance data from 40 MHz to 2600 MHz with 75 Ω impedance.
Application note for the NXP BGA3018 MMIC. Details evaluation board layout and performance as a 40 MHz to 1003 MHz CATV drop amplifier with 18 dB gain.
Application note for designing a wideband CATV Variable Gain Amplifier using BGA3015/BGA3018 amplifiers and BAP70Q PIN diode attenuators with 20dB dynamic range.
