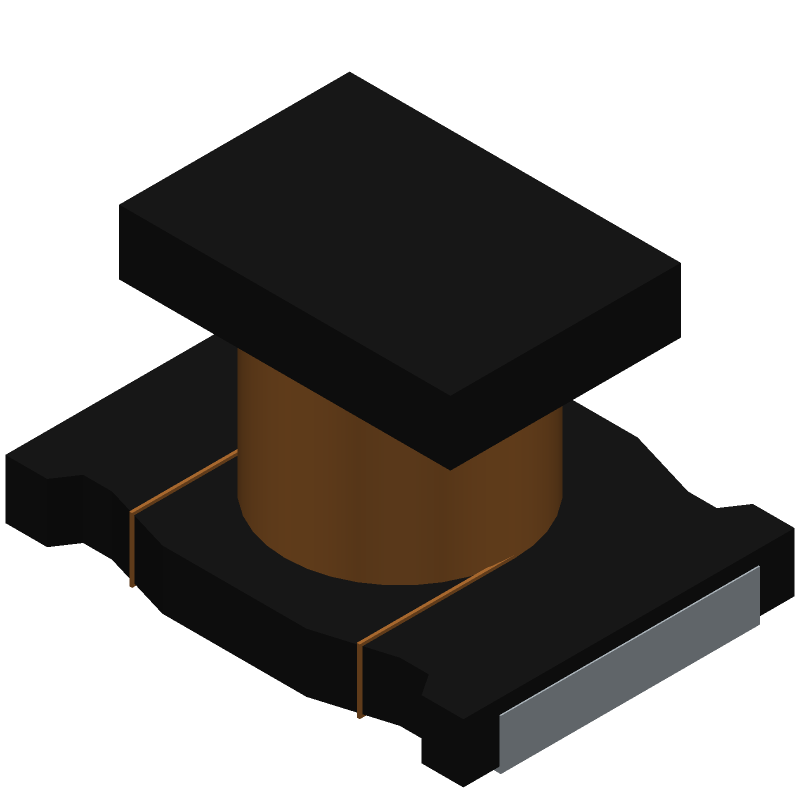

This general purpose inductor from Murata features a nominal inductance of 3.3uH and a minimum quality factor of 35. It has a maximum rated current of 0.13A and a DC resistance of 0.793 ohms. The inductor is designed for use in RF applications and is available in a 1206 chip package. It can operate within a temperature range of -40 to 85 degrees Celsius.
Quick Jump:
Technical Specifications
Murata LQH31MN3R3J03K technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 3.2 |
| Tolerance | 5 |
| Package Width | 1.6 |
| Package Height | 1.8 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 3.3 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.793 |
| Rated Current-Max | 0.13 |
| Test Frequency | 1 |
| Self Resonance Frequency | 38 |
| Quality Factor-Min (at L-nom) | 35 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
No datasheet is available for this part.
