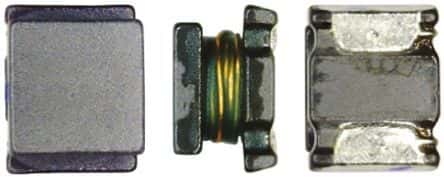

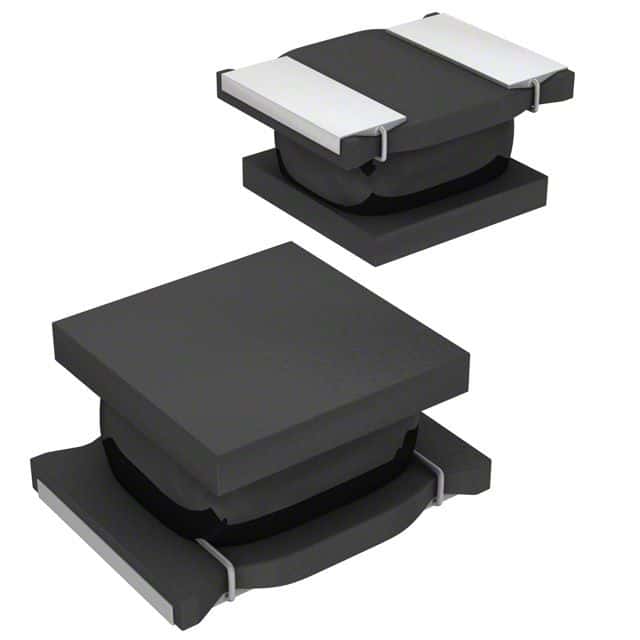

Surface mount general purpose inductor featuring 1µH inductance with a 20% tolerance. This wirewound ferrite-core component is housed in a 1210 (3225 metric) SMD package, offering a rated current of 1A and a DC resistance of 78mΩ. Operating within a temperature range of -40°C to 85°C, it provides a self-resonant frequency of 100MHz.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQH32CN1R0M33L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current | 190mA |
| DC Current | 1A |
| DC Resistance (DCR) | 78mR |
| Depth | 2.7mm |
| Height | 2mm |
| Inductance | 1uH |
| Inductance Tolerance | 20% |
| Inductor Type | Wirewound |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 1A |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Rated Current-Max | 1A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100MHz |
| Series | LQH32C_33 |
| Series Resistance | 78mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Weight | 0.002116oz |
| Width | 2.5mm |
| RoHS | Compliant |
