Surface mount fixed inductor featuring 15µH inductance with a 5% tolerance, designed for general-purpose applications. This unshielded, wirewound ferrite core component operates with a rated current of 170mA and a DC resistance of 2.2Ω. It boasts a Q factor of 35 at 1MHz and a self-resonant frequency of 16MHz, housed in a 1210 (3225 metric) case. Operating temperature range is -40°C to 85°C, with lead-free and RoHS compliance.
Frequency16MHz
Package1210
Current Rating170mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata LQH32MN150J23L technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 170mA |
| DC Current | 170mA |
| DC Resistance (DCR) | 2.2R |
| Depth | 2.7mm |
| Frequency | 16MHz |
| Height | 2mm |
| Height - Seated (Max) | 0.087inch |
| Inductance | 15uH |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 170mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 35 |
| Radiation Hardening | No |
| Rated Current-Max | 170mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 16MHz |
| Series | LQH32M |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 5% |
| Weight | 0.002116oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH32MN150J23L Datasheet
Download the complete datasheet for Murata LQH32MN150J23L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

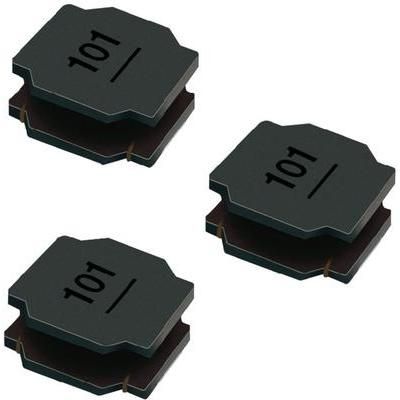

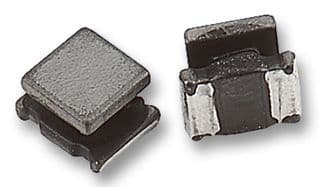

Product Images
