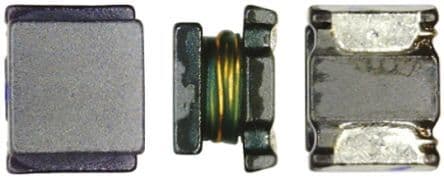

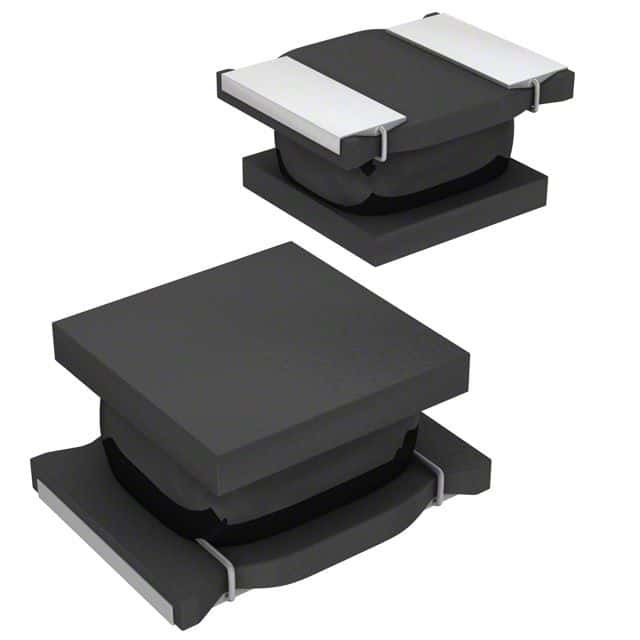

Surface mount fixed inductor featuring 1µH inductance with a 20% tolerance, designed for general-purpose applications. This unshielded, wirewound ferrite core component offers a rated current of 445mA and a DC resistance of 500mΩ. It operates within a temperature range of -40°C to 85°C and has a Q factor of 20 at 1MHz, with a self-resonant frequency of 100MHz. Packaged in a 1210 (3225 metric) case, it is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQH32MN1R0M23L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Murata LQH32MN1R0M23L technical specifications.
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 445mA |
| DC Current | 445mA |
| DC Resistance (DCR) | 500mR |
| Depth | 2.7mm |
| Frequency | 100MHz |
| Height | 2mm |
| Height - Seated (Max) | 0.087inch |
| Inductance | 1uH |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 445mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Rated Current-Max | 445mA |
| Resistance | 500mR |
| RMS Current (Irms) | 445mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100MHz |
| Series | LQH32M |
| Series Resistance | 500mR |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Weight | 0.002116oz |
| Width | 2.5mm |
| RoHS | Compliant |
