Surface mount wirewound fixed inductor with 3.3uH inductance and 10% tolerance. Features a ferrite core, 300mA DC current rating, and 1 Ohm DC resistance. Operating temperature range is -40°C to 85°C. This unshielded component is packaged in a 1210 case size on tape and reel.
Frequency38MHz
Package1210
Current270mA
Current Rating300mA
Quick Jump:
Technical Specifications
Murata LQH32MN3R3K23L technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current | 270mA |
| Current Rating | 300mA |
| DC Current | 300mA |
| DC Resistance (DCR) | 1R |
| Depth | 2.7mm |
| Frequency | 38MHz |
| Height | 0.061inch |
| Inductance | 3.3uH |
| Inductance Tolerance | 10% |
| Inductor Type | Wirewound |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 300mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 38MHz |
| Series | LQH32M |
| Series Resistance | 1R |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 10% |
| Weight | 0.002116oz |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH32MN3R3K23L Datasheet
Download the complete datasheet for Murata LQH32MN3R3K23L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

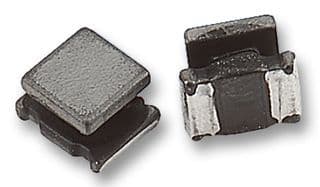

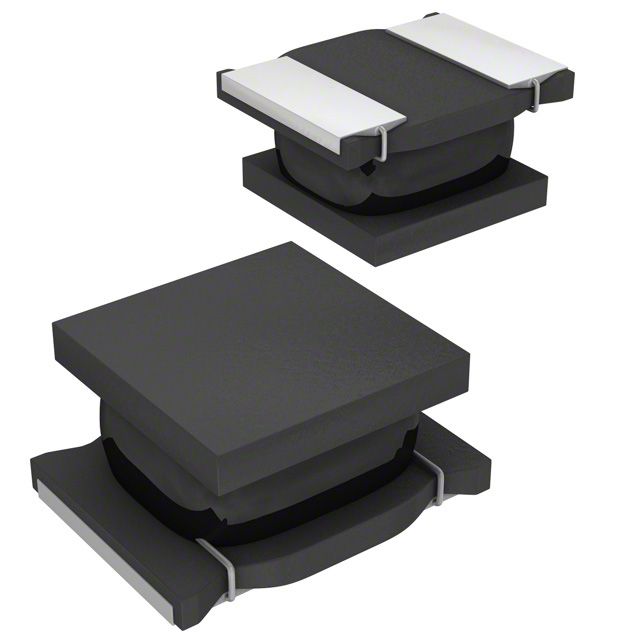

Product Images
