Surface mount general purpose inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 450mA rated current, and 500mA saturation current. DC resistance is 810mΩ. Dimensions are 3.2mm length, 2.8mm depth, and 2mm height, housed in a 1210 (3225 metric) case. Operating temperature range is -40°C to 85°C.
Package1210
Current Rating450mA
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Murata LQH32PN220MN0L technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current Rating | 450mA |
| DC Current | 450mA |
| DC Resistance (DCR) | 810mR |
| Depth | 2.8mm |
| Height | 2mm |
| Height - Seated (Max) | 0.067inch |
| Inductance | 22uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 500mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 450mA |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 450mA |
| RoHS Compliant | Yes |
| Saturation Current | 500mA |
| Self Resonant Frequency | 20MHz |
| Series | LQH32P_N0 |
| Series Resistance | 972mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Weight | 0.001552oz |
| Width | 0.098inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH32PN220MN0L Datasheet
Download the complete datasheet for Murata LQH32PN220MN0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

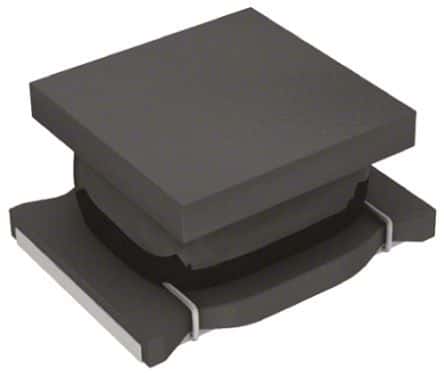

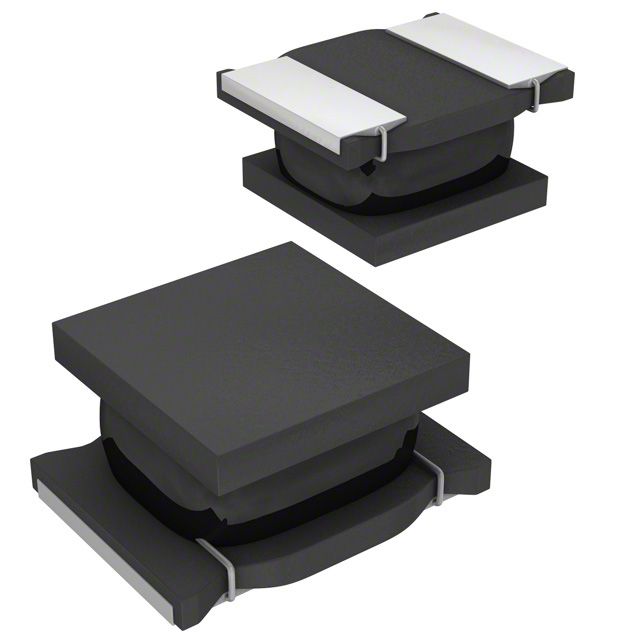

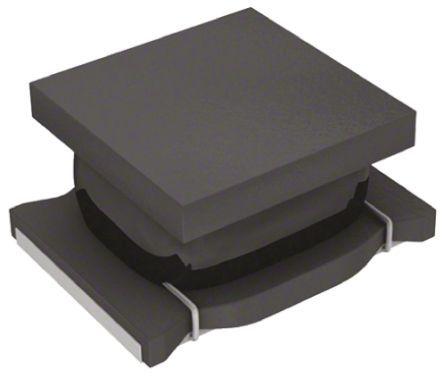

Product Images
