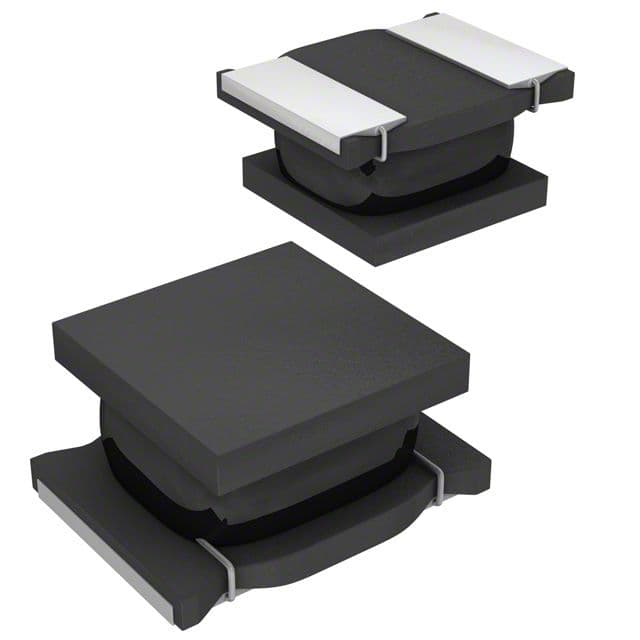

Surface mount shielded wirewound power inductor with 22µH inductance and 20% tolerance. Features a ferrite core, 650mA DC current rating, and 410mA saturation current. DC resistance is 612mΩ at a test frequency of 1MHz. Operating temperature range is -40°C to 125°C. Packaged in a 1212 (3030 metric) case, tape and reel.
Package1212
Current410mA
Current Rating650mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata LQH3NPN220MM0L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata LQH3NPN220MM0L technical specifications.
General
| Case Code (Imperial) | 1212 |
| Case Code (Metric) | 3030 |
| Package/Case | 1212 |
| Core Material | Ferrite |
| Current | 410mA |
| Current Rating | 650mA |
| DC Current | 650mA |
| DC Resistance (DCR) | 612mR |
| Depth | 3.2mm |
| Height | 0.9mm |
| Height - Seated (Max) | 0.059inch |
| Inductance | 22uH |
| Lead Free | Lead Free |
| Length | 3mm |
| Max DC Current | 650mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 410mA |
| Self Resonant Frequency | 28MHz |
| Series | LQH3NP_M0 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Weight | 0.001799oz |
| Width | 0.118inch |
