Surface mount power chip inductor featuring wirewound construction with a ferrite core. Offers 47µH inductance with a 20% tolerance, tested at 1MHz. Rated for 410mA DC current with a DC resistance of 1.5Ω. Operating temperature range from -40°C to 125°C. Shielded design in a 1212 (3030 metric) case, supplied on tape and reel.
Package1212
Current710mA
Current Rating410mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Murata LQH3NPN470MM0L technical specifications.
General
| Case Code (Imperial) | 1212 |
| Case Code (Metric) | 3030 |
| Package/Case | 1212 |
| Core Material | Ferrite |
| Current | 710mA |
| Current Rating | 410mA |
| DC Current | 410mA |
| DC Resistance (DCR) | 1.5R |
| Depth | 3.2mm |
| Height | 0.9mm |
| Height - Seated (Max) | 0.039inch |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 3mm |
| Max DC Current | 310mA |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Saturation Current | 310mA |
| Self Resonant Frequency | 18MHz |
| Series | LQH3NP_M0 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Weight | 0.001799oz |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH3NPN470MM0L Datasheet
Download the complete datasheet for Murata LQH3NPN470MM0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

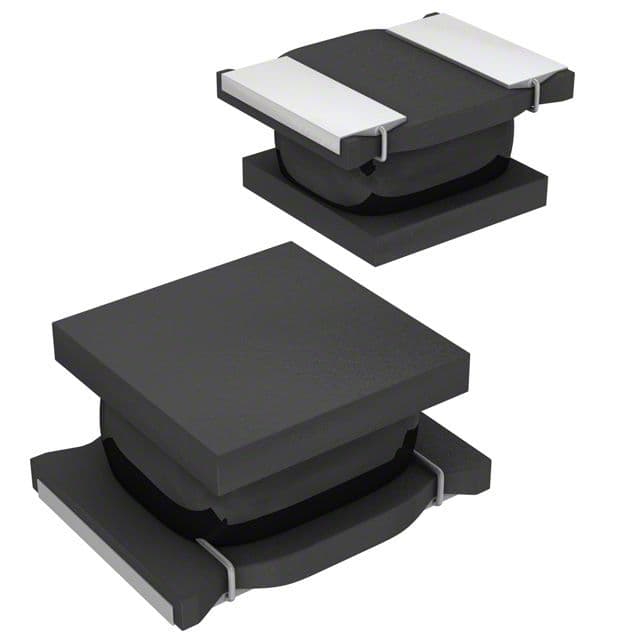

Product Images
