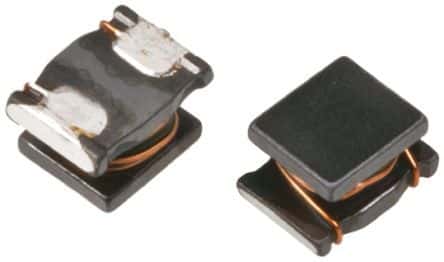

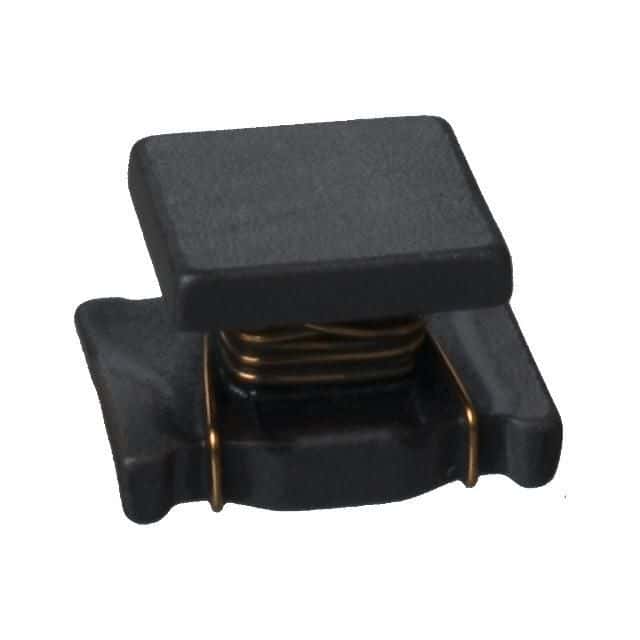

Surface mount fixed inductor with 100µH inductance and 10% tolerance, designed for general purpose applications. Features a ferrite core, unshielded wirewound construction, and a 1812 case code. Rated for a maximum DC current of 160mA with a DC resistance of 2.5Ω. Operates within a temperature range of -40°C to 85°C and exhibits a Q factor of 40 at 1MHz, with a self-resonant frequency of 6.8MHz. Packaged in tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQH43MN101K03L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current | 40mA |
| Current Rating | 160mA |
| DC Current | 160mA |
| DC Resistance (DCR) | 2.5R |
| Depth | 3.4mm |
| Frequency | 6.8MHz |
| Height | 2.6mm |
| Inductance | 100uH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max DC Current | 160mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 40 |
| Radiation Hardening | No |
| Rated Current-Max | 160mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 6.8MHz |
| Series | LQH43M |
| Series Resistance | 2.5R |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 10% |
| Weight | 0.004586oz |
| Width | 3.2mm |
| RoHS | Compliant |
