Surface mount fixed inductor featuring 33µH inductance with a 10% tolerance, tested at 1MHz. This unshielded, wirewound ferrite core component offers a 270mA DC current rating and a low 1.2Ω DC resistance. Designed for general-purpose applications, it operates within a temperature range of -40°C to 85°C and is packaged in an 1812 (4532) case code on tape and reel. The inductor exhibits a Q factor of 35 at 1MHz and a self-resonant frequency of 12MHz.
Frequency12MHz
Package1812
Current200mA
Current Rating270mA
Quick Jump:
Technical Specifications
Murata LQH43MN330K03L technical specifications.
General
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current | 200mA |
| Current Rating | 270mA |
| DC Current | 270mA |
| DC Resistance (DCR) | 1.2R |
| Depth | 3.4mm |
| Frequency | 12MHz |
| Height | 2.6mm |
| Inductance | 33uH |
| Length | 4.5mm |
| Max DC Current | 270mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 35 |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 12MHz |
| Series | LQH43M |
| Series Resistance | 1.2R |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 10% |
| Weight | 0.004586oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH43MN330K03L Datasheet
Download the complete datasheet for Murata LQH43MN330K03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

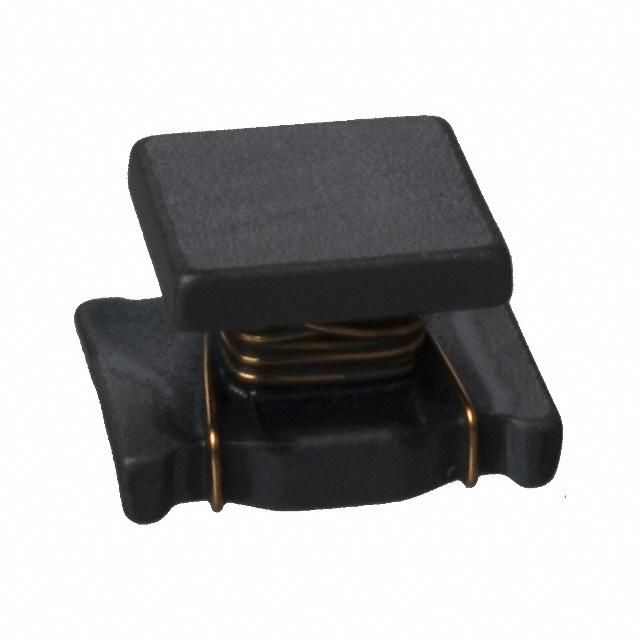

Product Images
