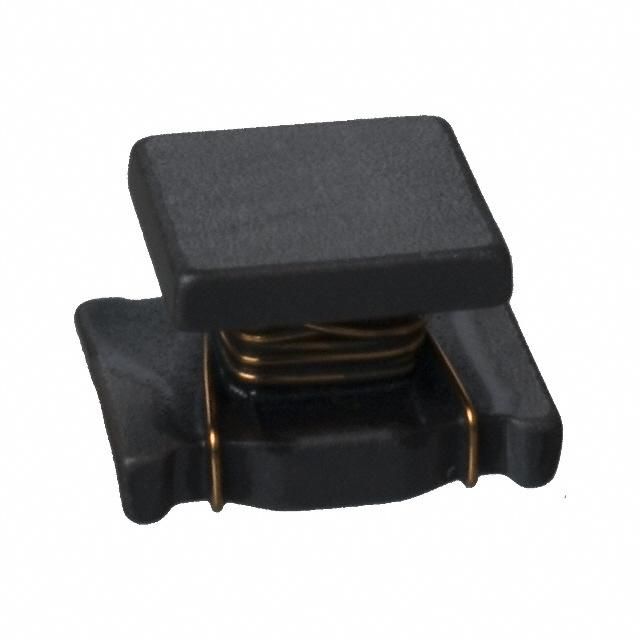

Surface mount fixed inductor featuring 68µH inductance with a 10% tolerance, tested at 1MHz. This unshielded, wirewound ferrite core component offers a 35 Q-factor and a maximum DC current rating of 180mA. It operates within a temperature range of -40°C to 85°C and has a DC resistance of 1.9Ω. The 1812 case code (4.5mm x 3.2mm x 2.6mm) is provided in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Murata LQH43MN680K03L datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current Rating | 180mA |
| DC Current | 180mA |
| DC Resistance (DCR) | 1.9R |
| Depth | 3.4mm |
| Frequency | 8.4MHz |
| Height | 2.6mm |
| Height - Seated (Max) | 0.11inch |
| Inductance | 68uH |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max DC Current | 180mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Q Factor | 35 |
| Radiation Hardening | No |
| Rated Current-Max | 180mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 8.4MHz |
| Series | LQH43MN_03 |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 10% |
| Weight | 0.004586oz |
| Width | 3.2mm |
| RoHS | Compliant |
