Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 790mA current rating, and 249mΩ DC resistance. Operates within a -40°C to 85°C temperature range and is supplied in tape and reel packaging.
Package1515
Current Rating790mA
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Murata LQH44PN100MJ0L technical specifications.
General
| Case Code (Imperial) | 1515 |
| Package/Case | 1515 |
| Core Material | Ferrite |
| Current Rating | 790mA |
| DC Current | 790mA |
| DC Resistance (DCR) | 249mR |
| Depth | 4.2mm |
| Height | 0.9mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 4mm |
| Max DC Current | 790mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 790mA |
| RoHS Compliant | Yes |
| Saturation Current | 560mA |
| Self Resonant Frequency | 30MHz |
| Series | LQH44P_J0 |
| Series Resistance | 248.4mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.002469oz |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH44PN100MJ0L Datasheet
Download the complete datasheet for Murata LQH44PN100MJ0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

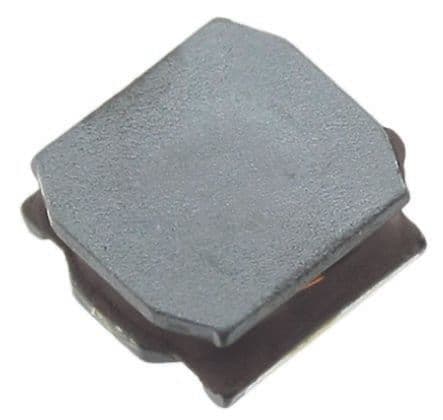

Product Images
