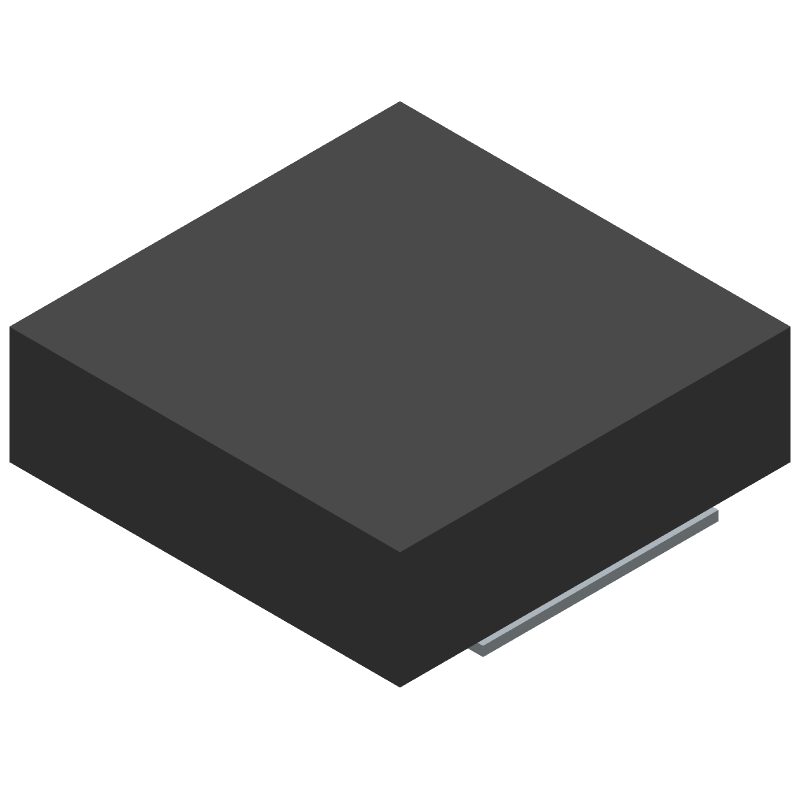

The LQH44PN330MJ0K is a general purpose inductor with a nominal inductance of 33uH and a maximum rated current of 0.43A. It has a DC resistance of 0.888 ohms and a self resonance frequency of 15 MHz. The inductor is shielded and has a package type of CHIP, 1515. It is designed for use in RF inductor applications and has a tolerance of 20%. The inductor operates over a temperature range of -40 to 125 degrees Celsius.
Quick Jump:
Technical Specifications
Murata LQH44PN330MJ0K technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 4 |
| Tolerance | 20 |
| Package Width | 4 |
| Package Height | 1.1 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 33 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.888 |
| Rated Current-Max | 0.43 |
| Test Frequency | 0.1 |
| Self Resonance Frequency | 15 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQH44PN330MJ0K Datasheet
Download the complete datasheet for Murata LQH44PN330MJ0K to view detailed technical specifications.
No datasheet is available for this part.
