Surface mount shielded wirewound power inductor with 4.7µH inductance and 20% tolerance. Features a ferrite core, 980mA DC current rating, and 840mA saturation current. DC resistance is 140mΩ at a test frequency of 100kHz. Housed in a 1515 (4040 metric) case with dimensions of 4mm length, 4mm width, and 0.9mm height. Operates from -40°C to 85°C and is RoHS compliant.
Package1515
Current Rating980mA
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Murata LQH44PN4R7MJ0L technical specifications.
General
| Case Code (Imperial) | 1515 |
| Case Code (Metric) | 4040 |
| Package/Case | 1515 |
| Core Material | Ferrite |
| Current Rating | 980mA |
| DC Current | 980mA |
| DC Resistance (DCR) | 140mR |
| Depth | 4.2mm |
| Height | 0.9mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 4.7uH |
| Inductance Tolerance | 20% |
| Length | 4mm |
| Max DC Current | 980mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Saturation Current | 840mA |
| Self Resonant Frequency | 50MHz |
| Series | LQH44P_J0 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Weight | 0.002469oz |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQH44PN4R7MJ0L Datasheet
Download the complete datasheet for Murata LQH44PN4R7MJ0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

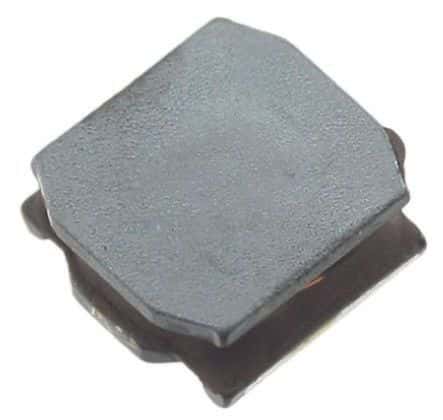

Product Images
