General purpose shielded SMD inductor featuring 1µH inductance with a 30% tolerance, designed for surface mount applications. This ferrite-core component operates within a temperature range of -40°C to 85°C and offers a maximum DC current rating of 220mA. The 0805 (2012 metric) case code provides compact dimensions of 2mm length, 1.45mm depth, and 0.85mm height, with a DC resistance of 200mΩ. It is RoHS compliant and packaged on tape and reel.
Package0805
Current Rating220mA
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications
Murata LQM21FN1R0N00D technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 220mA |
| DC Current | 220mA |
| DC Resistance (DCR) | 200mR |
| Depth | 1.45mm |
| Height | 0.85mm |
| Height - Seated (Max) | 0.057inch |
| Inductance | 1uH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Length | 2mm |
| Max DC Current | 220mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 220mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Saturation Current | 220mA |
| Self Resonant Frequency | 105MHz |
| Series | LQM21F_00 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 30% |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQM21FN1R0N00D Datasheet
Download the complete datasheet for Murata LQM21FN1R0N00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

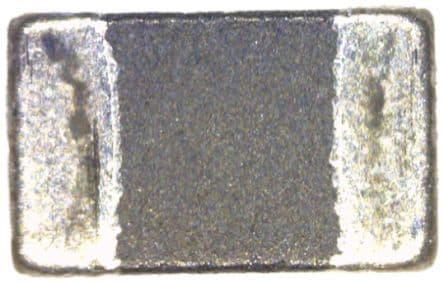

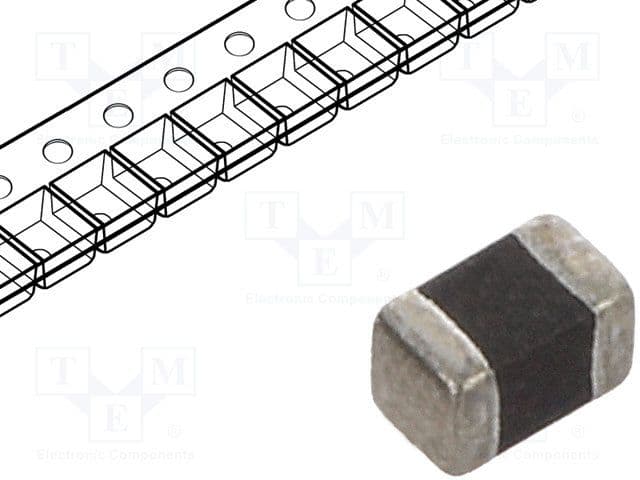

Product Images
