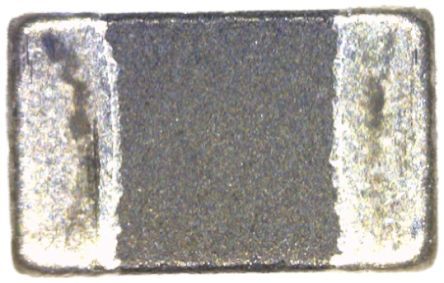

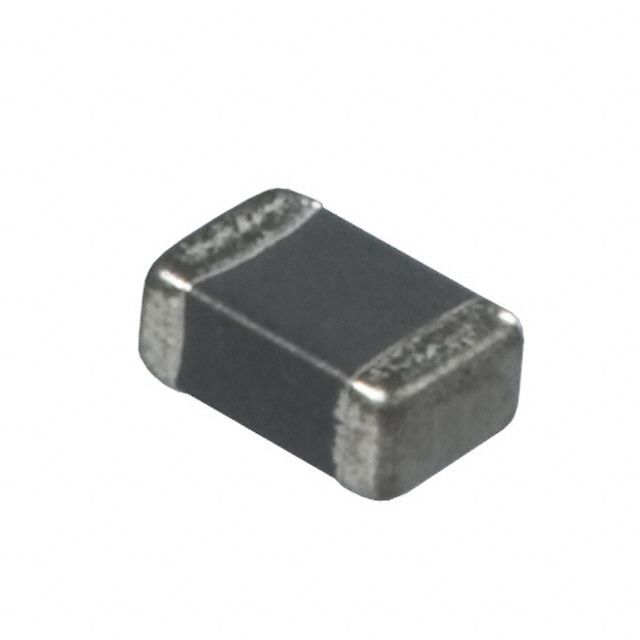

Surface mount fixed inductor featuring a 22µH inductance with a 30% tolerance, tested at 1MHz. This shielded, multi-layer ferrite core component offers a 13mA DC current rating and a low 350mΩ DC resistance. Designed for surface mounting in an 0805 (2012 metric) case, it operates within a temperature range of -40°C to 85°C and is supplied on tape and reel.
Package0805
Current Rating13mA
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Murata LQM21FN220N00L technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 13mA |
| DC Current | 13mA |
| DC Resistance (DCR) | 350mR |
| Depth | 1.25mm |
| Height | 1.25mm |
| Height - Seated (Max) | 0.057inch |
| Inductance | 22uH |
| Lead Free | Lead Free |
| Length | 2mm |
| Max DC Current | 13mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 13mA |
| Self Resonant Frequency | 15MHz |
| Series | LQM21F_00 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 30% |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
