Surface mount fixed inductor featuring a shielded, multi-layer ferrite core. Delivers 2.2µH inductance with a 30% tolerance at 1MHz test frequency. Rated for 150mA DC current with a DC resistance of 364mΩ. Housed in an 0805 (2012 metric) case, this RoHS compliant component operates from -40°C to 85°C.
Package0805
Current Rating150mA
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
Murata LQM21FN2R2N00D technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 150mA |
| DC Current | 150mA |
| DC Resistance (DCR) | 364mR |
| Depth | 1.45mm |
| Height | 1.8mm |
| Height - Seated (Max) | 0.057inch |
| Inductance | 2.2uH |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max DC Current | 150mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 150mA |
| Self Resonant Frequency | 70MHz |
| Series | LQM21F_00 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 30% |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQM21FN2R2N00D Datasheet
Download the complete datasheet for Murata LQM21FN2R2N00D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

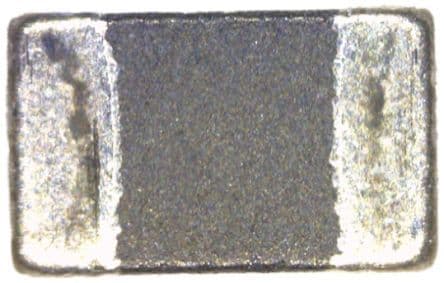

Product Images
