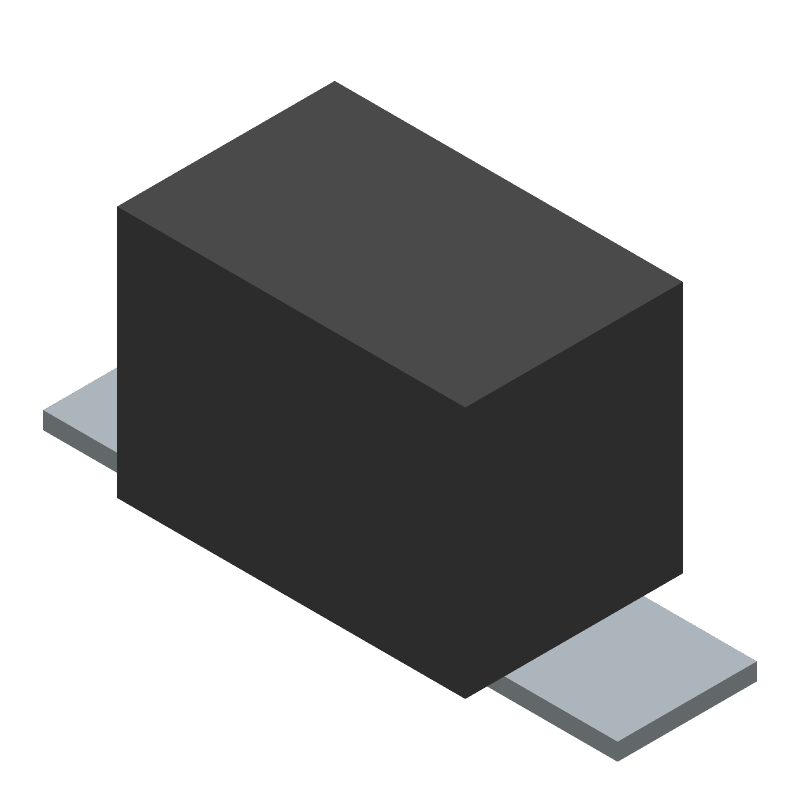

The LQM21NN4R7K10B is a surface mount fixed inductor from Murata with a nominal inductance of 4.7uH and a tolerance of 10%. It has a maximum operating temperature of 85C and a self resonance frequency of 47MHz. This inductor is designed for RF applications and is shielded for reduced electromagnetic interference.
Quick Jump:
Technical Specifications
Murata LQM21NN4R7K10B technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 2 |
| Min Operating Temperature | -40 |
| Number of Functions | 1 |
| Package Length | 2 |
| Tolerance | 10 |
| Package Width | 1.25 |
| Package Height | 1.25 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 4.7 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 1 |
| Rated Current-Max | 0.03 |
| Test Frequency | 10 |
| Self Resonance Frequency | 47 |
| Quality Factor-Min (at L-nom) | 45 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Murata LQM21NN4R7K10B Datasheet
Download the complete datasheet for Murata LQM21NN4R7K10B to view detailed technical specifications.
No datasheet is available for this part.
