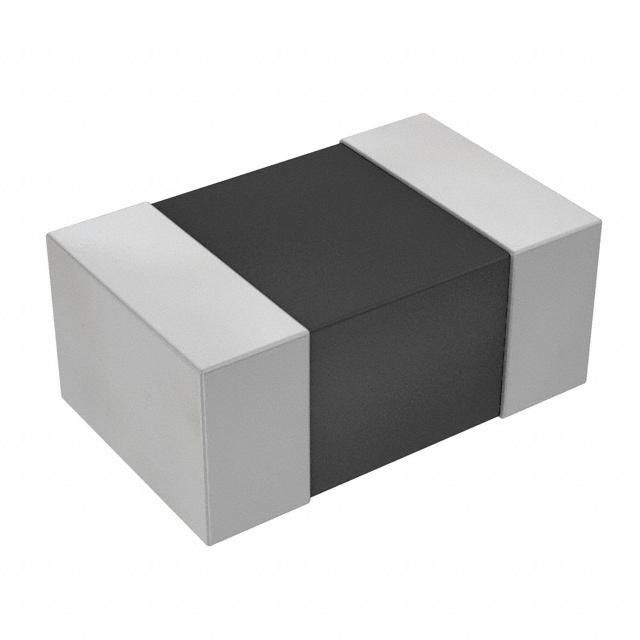

Surface mount shielded multi-layer power inductor with 4.7µH inductance and 20% tolerance. Features a ferrite core, 750mA DC current rating, and 363mΩ DC resistance. Operates within a -40°C to 85°C temperature range and is housed in an 0805 (2012 metric) case. This component is RoHS compliant and supplied on tape and reel.
Package0805
Current Rating750mA
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Murata LQM21PN4R7MGSD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Murata LQM21PN4R7MGSD technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Core Material | Ferrite |
| Current Rating | 750mA |
| DC Current | 750mA |
| DC Resistance (DCR) | 363mR |
| Depth | 1.4mm |
| Height | 0.9mm |
| Height - Seated (Max) | 0.039inch |
| Inductance | 4.7uH |
| Length | 0.079inch |
| Max DC Current | 750mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 20MHz |
| Series | LQM21P |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQM21PN4R7MGSD Datasheet
Download the complete datasheet for Murata LQM21PN4R7MGSD to view detailed technical specifications.
