General purpose shielded chip inductor with 1µH inductance and 20% tolerance. Features a ferrite core, 1.6A rated current, and 69mΩ DC resistance. Surface mountable in a 1008 (2520 metric) case code, operating from -55°C to 125°C. RoHS compliant and supplied on tape and reel.
Package1008
Current Rating1.6A
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications
Murata LQM2HPN1R0MG0L technical specifications.
General
Case Code (Imperial)
1008
Case Code (Metric)
2520
Package/Case
1008
Core Material
Ferrite
Current Rating
1.6A
DC Current
1.6A
DC Resistance (DCR)
69mR
Depth
2.2mm
Height
1.2mm
Height - Seated (Max)
0.039inch
Inductance
1uH
Inductance Tolerance
20%
Lead Free
Lead Free
Length
2.5mm
Max DC Current
1.6A
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
1.6A
Reach SVHC Compliant
No
RMS Current (Irms)
1.6A
RoHS Compliant
Yes
Self Resonant Frequency
60MHz
Series
LQM2HP_G0
Series Resistance
69mR
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
1MHz
Tolerance
20%
Width
0.079inch
Compliance
RoHS
Compliant
Datasheet
Murata LQM2HPN1R0MG0L Datasheet
Download the complete datasheet for Murata LQM2HPN1R0MG0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

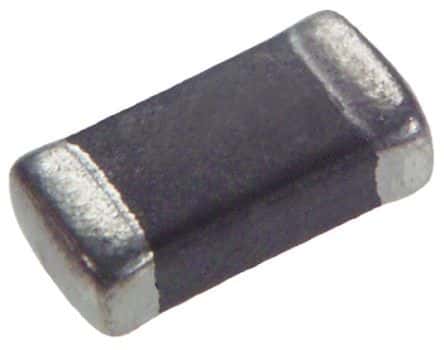

Product Images
