General purpose, shielded, surface mount inductor with 1uH inductance and 20% tolerance. Features a ferrite core, 1.5A RMS current rating, and 113mR DC resistance. Operates within a temperature range of -55°C to 125°C and is housed in a 1008 (0806 Imperial) SMD package.
Package1008
Current150mA
MountingSurface Mount
Inductance1uH
Quick Jump:
Technical Specifications
Murata LQM2HPN1R0MJ0L technical specifications.
General
| Case Code (Imperial) | 0806 |
| Case Code (Metric) | 2016 |
| Package/Case | 1008 |
| Core Material | Ferrite |
| Current | 150mA |
| DC Current | 1.5A |
| DC Resistance (DCR) | 113mR |
| Depth | 2.2mm |
| Height | 1.1mm |
| Inductance | 1uH |
| Inductance Tolerance | 20% |
| Length | 2.5mm |
| Max DC Current | 1.5A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.9V |
| Mount | Surface Mount |
| Nominal Supply Voltage (DC) | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.5A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 70MHz |
| Series | LQM2HP_J0 |
| Series Resistance | 113mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 2mm |
Compliance
| RoHS | Compliant |
Datasheet
Murata LQM2HPN1R0MJ0L Datasheet
Download the complete datasheet for Murata LQM2HPN1R0MJ0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

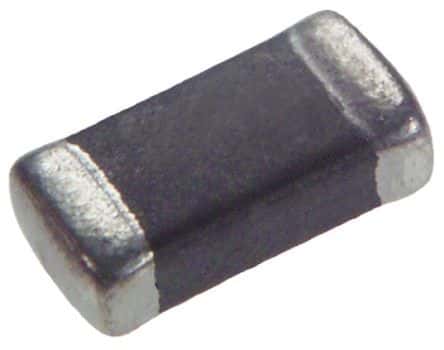

Product Images
