Murata
LQM2HPN3R3MGSL
Inductor Power Chip Shielded Multi-Layer 3.3uH 20% 1MHz Ferrite 1.05A 0.263Ohm DCR 1008 T/R
Package1008
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Murata LQM2HPN3R3MGSL technical specifications.
General
Package/Case
1008
DC Resistance (DCR)
263mR
Inductance
3.3uH
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
RoHS Compliant
Yes
Self Resonant Frequency
20MHz
Series
LQM2
Shielding
Shielded
Test Frequency
1MHz
Tolerance
20%
Compliance
RoHS
Compliant
Datasheet
Murata LQM2HPN3R3MGSL Datasheet
Download the complete datasheet for Murata LQM2HPN3R3MGSL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

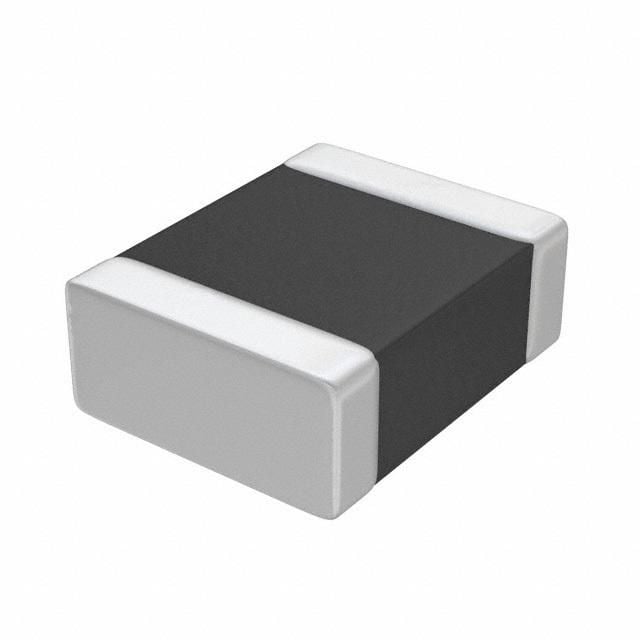

Product Images
