Murata
LQP03HQ2N9B02D

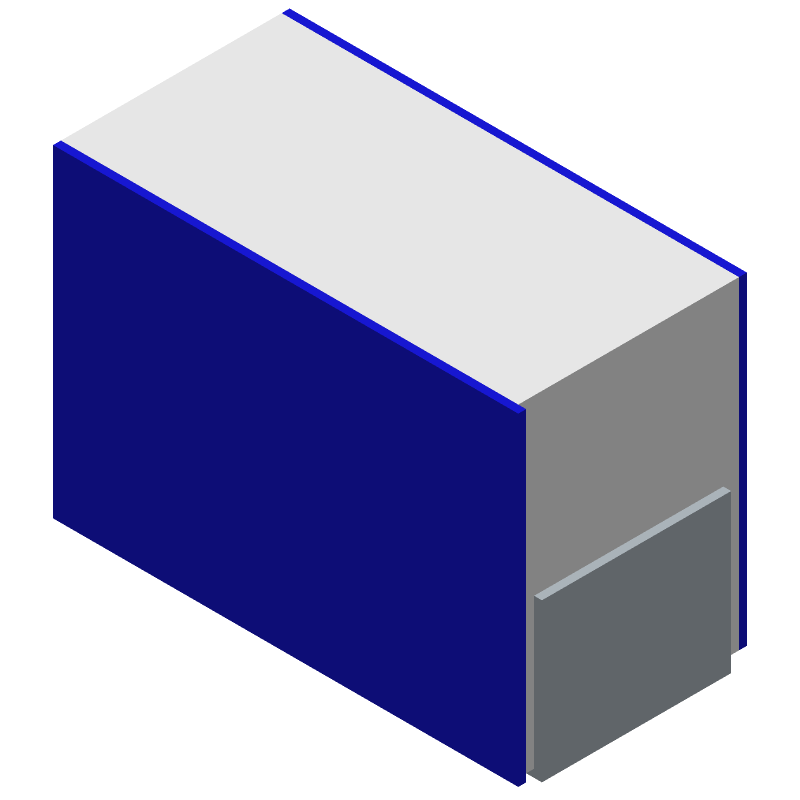

Inductor High Frequency Chip Unshielded Thin Film 0.0029uH 0.1nH 500MHz 20Q-Factor 0.6A 0.12Ohm DCR 0201 T/R
Inductor High Frequency Chip Unshielded Thin Film 0.0029uH 0.1nH 500MHz 20Q-Factor 0.6A 0.12Ohm DCR 0201 T/R
Quick Jump:
Technical Specifications
Murata LQP03HQ2N9B02D technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 0.6 |
| Tolerance | 3.448 |
| Package Width | 0.3 |
| Package Height | 0.35 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 0.0029 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | NO |
| Inductor Application | RF INDUCTOR |
| DC Resistance | 0.12 |
| Rated Current-Max | 0.6 |
| Test Frequency | 500 |
| Self Resonance Frequency | 8000 |
| Quality Factor-Min (at L-nom) | 20 |
Compliance
| RoHS | Yes |
| Eccn Code | EAR99 |
| HTS Code | 8504.50.80.00 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
No datasheet is available for this part.
